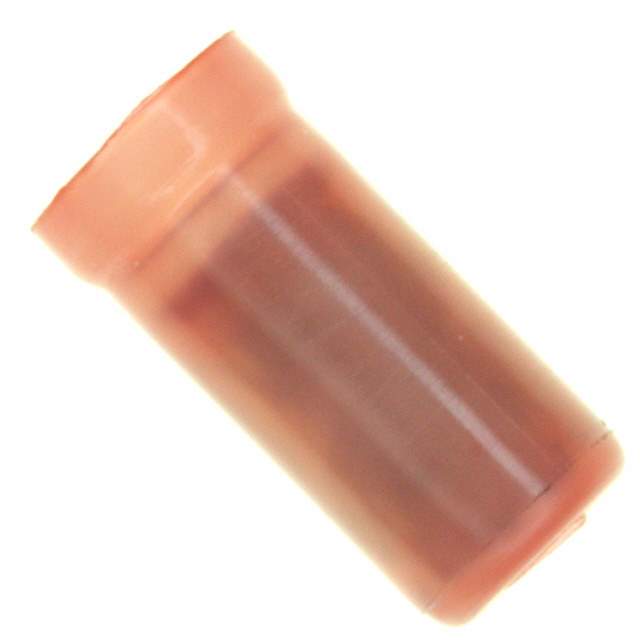

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Wire Splice Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Terminal Type Butt Splice, Closed End, Single Opening
Number of Wire Entries 1
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Fully Insulated
Features Serrated Mating Area
Color Red
Base Product Number 3283
RoHS Status Not applicable
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number A27481,2266-328307,328307-ND
Standard Package 1,000
Win Source Part Number 1333687-328307
Ultra Librarian 3D Model Ultra Librarian 328307 CAD Model

Description

The TE Connectivity AMP Connectors 1333687-328307 is a fully insulated butt splice wire connector designed for use with 18-22 AWG wires.

  • Color: Red
  • Mating Area: Serrated
  • Termination: Crimp
  • Opening: Single
  • Standard Package: 1,000
  • ECCN: EAR99
  • Temperature Range: -40°C to 125°C
  • HTSUS: 8536.90.4000
