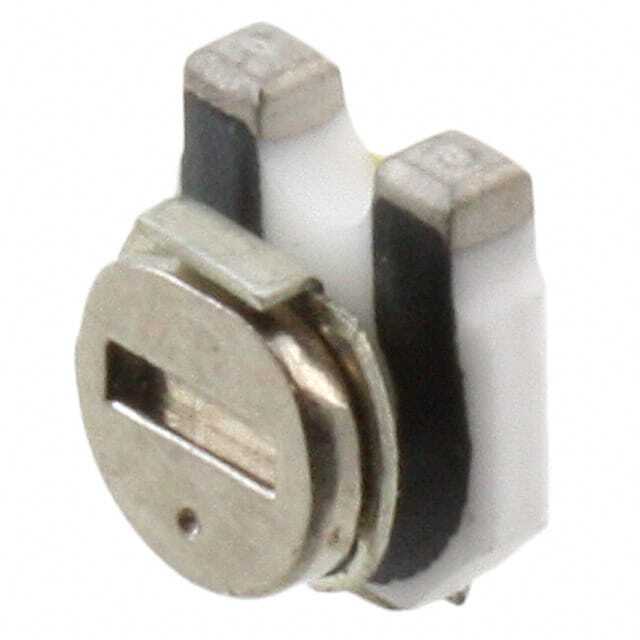

Same model may have multiple batches, images only for reference.
3142W502P
Same model may have multiple batches, images only for reference.

3142W502P

Part No 3142W502P
Manufacturer TE Connectivity
Catalog Trimmer Potentiometers
Description TRIMMER 5K OHM 0.15W J LEAD TOP / 5 kOhms 0.15W J Lead Surface Mount Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr TE Connectivity
Series 3142, Citec
Package Tape & Reel
Product Status Obsolete
Resistance 5 kOhms
Power (Watts) 0.15W
Tolerance ±25%
Temperature Coefficient ±250ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Type Surface Mount
Termination Style J Lead
Size / Dimension Rectangular - 0.177" x 0.157" Face (4.50mm x 4.00mm)
Base Product Number 3142W
Standard Package 800 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8050
Win Source Part Number 855619-3142W502P
Ultra Librarian 3D Model Ultra Librarian 3142W502P CAD Model

Description

The 855619-3142W502P is a trimmer potentiometer from the 3142 series by TE Connectivity.

  • Termination Style: J Lead
  • Mounting: Surface Mount
  • Resistance: 5 kOhms
  • Tolerance: ±25%
  • Power Rating: 0.15W
  • Temperature Coefficient: ±250ppm/°C
  • Status: Obsolete
  • Standard Package: 800 pcs
  • Resistive Material: Cermet
  • Adjustment: Top Adjustment
