Same model may have multiple batches, images only for reference.

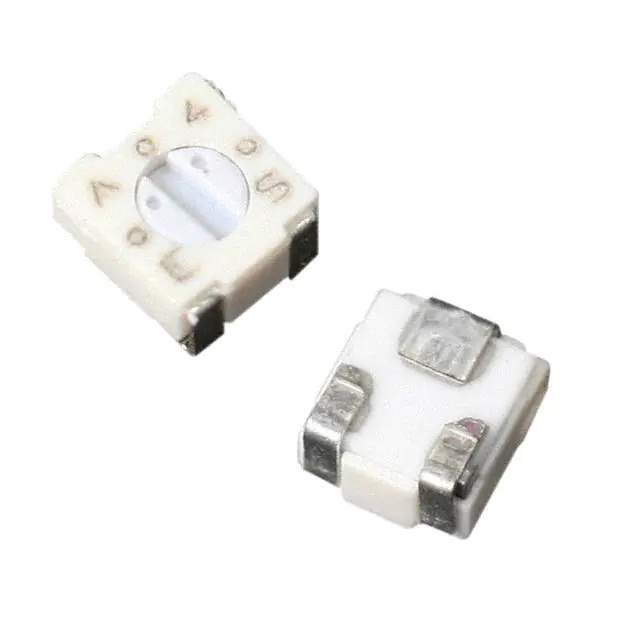

22AR100LFTR Real Image
Same model may have multiple batches, images only for reference.

22AR100LFTR

Part No 22AR100LFTR
Manufacturer TT Electronics
Catalog Trimmer Potentiometers
Description TRIMMER 100OHM 0.125W J LEAD TOP
Datasheet
22AR100LFTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr TT Electronics
Series 22
Package Tape & Reel
Product Status Active
Resistance 100 Ohms
Power (Watts) 0.125W, 1/8W
Tolerance ±20%
Temperature Coefficient ±100ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Type Surface Mount
Termination Style J Lead
Size / Dimension Rectangular - 0.138" x 0.126" Face (3.50mm x 3.20mm)
Base Product Number 22AR
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8050
Win Source Part Number 854639-22AR100LFTR
Ultra Librarian 3D Model Ultra Librarian 22AR100LFTR CAD Model

Description

The 854639-22AR100LFTR is a trimmer potentiometer from the 22 series.

  • Resistance: 100 Ohms
  • Tolerance: ±20%
  • Power Rating: 0.125W (1/8W)
  • Temperature Coefficient: ±100ppm/°C
  • Adjustment Type: Top adjustment
  • Package Type: Tape and reel
  • Size/Dimension: 0.138 inches x 0.126 inches (3.50mm x 3.20mm)
  • Resistive Material: Cermet
  • ECCN: EAR99
  • MSL Level: 1
  • REACH Status: Unaffected
  • HTSUS Code: 8533.40.8050
  • Manufacturer: TT Electronics
