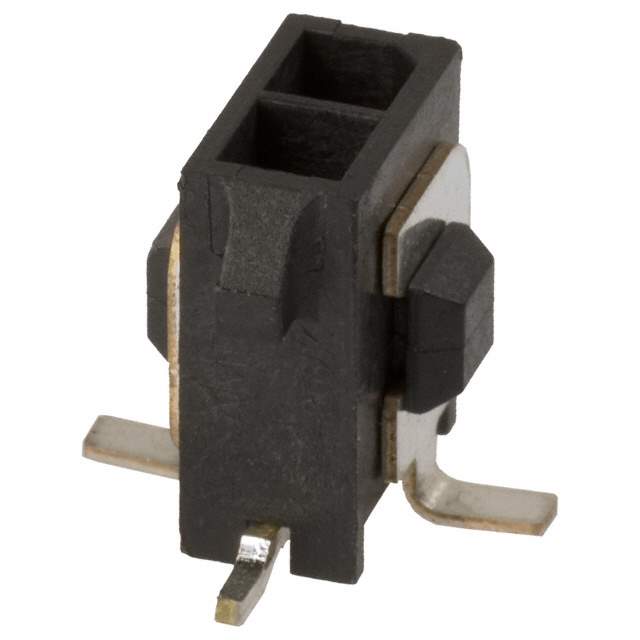

3-794636-2 Real Image
Same model may have multiple batches, images only for reference.

3-794636-2

Part No 3-794636-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER SMD 2POS / Connector Header Surface Mount 2 position
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Connector Type Header
Contact Type Male Pin
Number of Positions 2
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Surface Mount
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.364" (9.25mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250V
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications General Purpose
Base Product Number 794636
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 37946362,A33235TR,-3-794636-2-SI,A33235DKR,A33235CT
Standard Package 250
Win Source Part Number 1334477-3-794636-2
Ultra Librarian 3D Model Ultra Librarian 3-794636-2 CAD Model

Description

The TE Connectivity AMP Connectors 1334477-3-794636-2 is a header connector with male pins.

  • Packaging: Reel - TR
  • Positions: 2
  • Connector Type: Header
  • Contact Type: Male Pin
  • Positions Loaded: All
  • Rows: 2
  • Termination: Solder
  • Fastening Type: Locking Ramp
  • Voltage Rating: 250V
  • Insulation Material: Polyamide (PA), nylon
  • Contact Finish - Mating: Tin
  • Contact Finish Thickness - Mating: 100.0µin (2.54µm)
  • Contact Finish - Post: Tin
  • Contact Finish Thickness - Post: 100.0µin (2.54µm)
  • Insulation Color: Black
  • Shrouding: Shrouded - 4 Wall
  • Row Spacing - Mating: 0.118" (3.00mm)
  • Insulation Height: 0.364" (9.25mm)
  • Contact Shape: Square
  • Operating Temperature Range: -40°C ~ 105°C
  • ROHS3 Compliant: Yes
