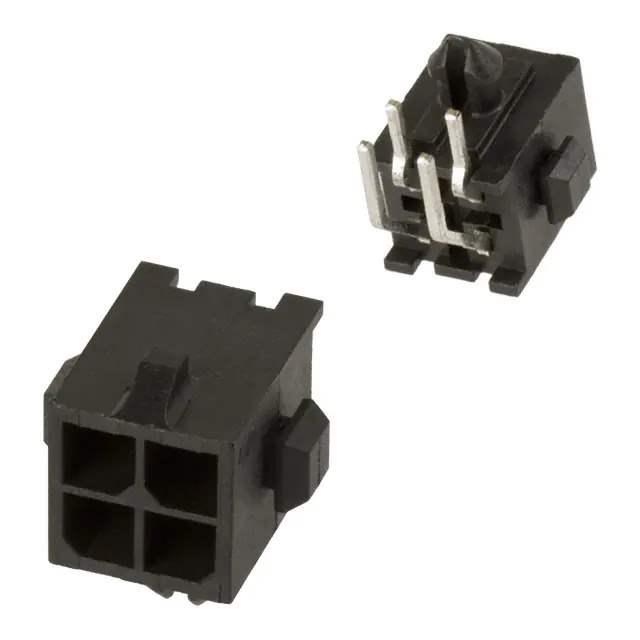

3-794618-4 Real Image
Same model may have multiple batches, images only for reference.

3-794618-4

Part No 3-794618-4
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 4POS 3MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series Micro MATE-N-LOK
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Number of Positions 4
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.290" (7.37mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Board Lock
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250V
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications General Purpose
Base Product Number 794618
Standard Package 377 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 849073-3-794618-4
Ultra Librarian 3D Model Ultra Librarian 3-794618-4 CAD Model

Description

The 849073-3-794618-4 is a Micro MATE-N-LOK series connector designed for use in various electronic applications.

  • Connector Type: Header
  • Contact Type: Male Pin
  • Positions: 4
  • Rows: 2
  • Termination: Solder
  • Fastening Type: Locking Ramp
  • Contact Material: Brass
  • Voltage Rating: 250V
  • Application: General Purpose
  • Package: Tray
  • Standard Package: 377 pcs
  • Insulation Material: Polyamide (PA), Nylon
  • Mounting Type: Through-Hole, Right-Angle
  • Shrouding: Shrouded - 4 Wall
  • Row Spacing: 0.118" (3.00mm)
  • Contact Finish - Mating: Tin, 100.0µin (2.54µm)
  • Temperature Range: -40°C to 105°C
  • Manufacturer: TE Connectivity
  • Product Status: Active
