Same model may have multiple batches, images only for reference.

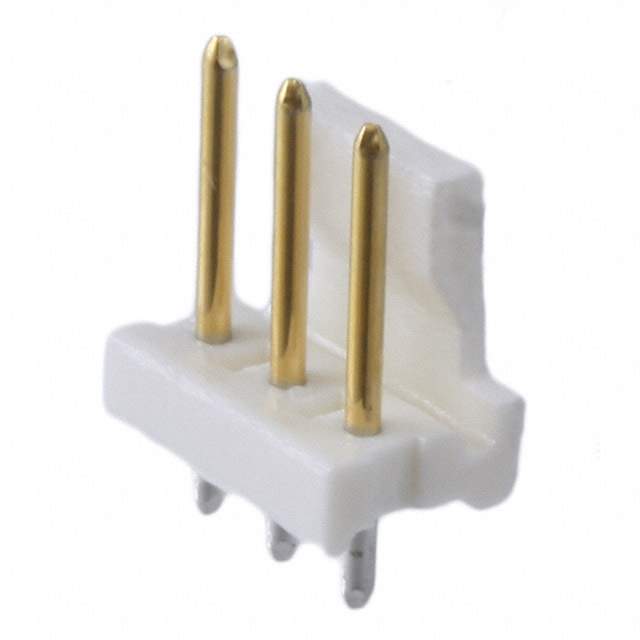

3-641208-3 Real Image
Same model may have multiple batches, images only for reference.

3-641208-3

Part No 3-641208-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 3POS 3.96MM / Connector Header Through Hole 3 position 0.156" (3.96mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.156" (3.96mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.400" (10.16mm)
Contact Length - Post 0.125" (3.18mm)
Overall Contact Length 0.650" (16.51mm)
Insulation Height 0.425" (10.80mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Glass Filled
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 600VAC
Applications General Purpose, Industrial
Base Product Number 641208
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -3-641208-3-SI,A31677,2266-3-641208-3,36412083
Standard Package 2,000
Win Source Part Number 1334241-3-641208-3
Ultra Librarian 3D Model Ultra Librarian 3-641208-3 CAD Model

Description

The 1334241-3-641208-3 header connector from TE Connectivity AMP Connectors is a male pin connector used in various industrial and general-purpose applications.

  • Position Number: 3
  • Contact Material: copper alloy
  • Contact Finish: gold
  • Shrouded: 1 wall
  • Fastening Type: friction lock
  • Temperature Range: -55°C to 105°C
  • Voltage Rating: 600VAC
  • Application: board to cable/wire connections in industrial and general-purpose applications
