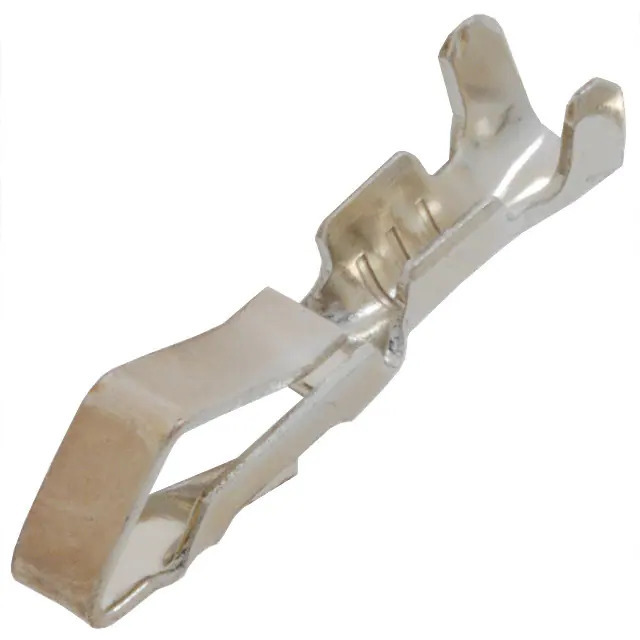

3-640252-1 TE Connectivity
Same model may have multiple batches, images only for reference.

3-640252-1

Part No 3-640252-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN SOCKET 18-24AWG CRIMP TIN / Socket Contact Tin 18-24 AWG Crimp Power
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Contacts
Mfr TE Connectivity AMP Connectors
Series SL-156
Package Tape & Reel (TR)
Product Status Active
Type Power
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 18-24 AWG
Contact Finish Tin
Contact Finish Thickness 80.0µin (2.03µm)
Base Product Number 640252
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1362866-3-640252-1
Ultra Librarian 3D Model Ultra Librarian 3-640252-1 CAD Model

Description

The SL-156 series rectangular connector contacts are designed for power applications from TE Connectivity AMP Connectors.

  • Contact Type: Socket contacts
  • Termination: Crimp termination
  • Wire Gauge: 18-24 AWG
  • Contact Finish: Tin
  • Contact Finish Thickness: 80.0μin (2.03μm)
  • Application: Power connections
