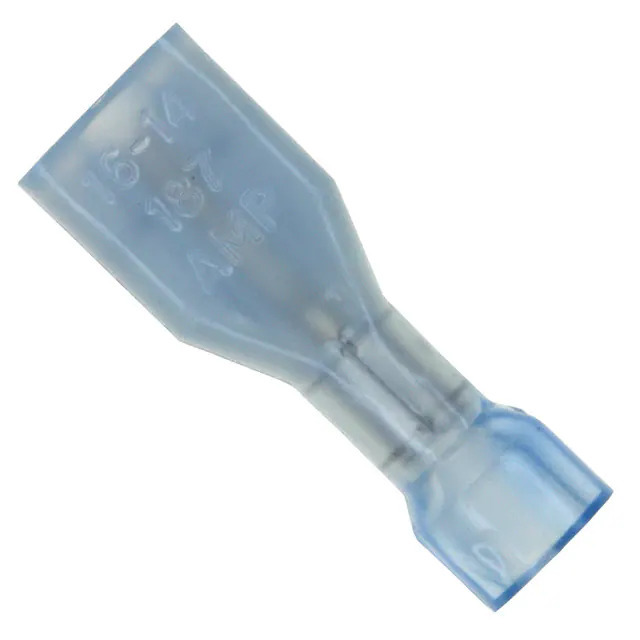

Same model may have multiple batches, images only for reference.

3-520404-2

Name: 3-520404-2
Brand: TE Connectivity
SKU: 1364788
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	3-520404-2
Manufacturer	TE Connectivity
Catalog	Terminals
Description	CONN QC RCPT 14-16AWG 0.187 / 0.187" (4.75mm) Quick Connect Female 14-16 AWG Crimp Connector Fully Insulated
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr	TE Connectivity AMP Connectors
Series	Ultra-Fast Plus
Package	Tape & Reel (TR)
Product Status	Active
Terminal Type	Standard
Gender	Female
Tab Width	0.187" (4.75mm)
Tab Thickness	0.032" (0.81mm)
Tab Length	-
Length - Overall	0.855" (21.72mm)
Termination	Crimp
Wire Gauge	14-16 AWG
Insulation	Fully Insulated
Mounting Type	Free Hanging (In-Line)
Features	-
Color	Blue
Contact Material	Brass
Contact Finish	Tin
Insulation Diameter	0.090" ~ 0.160" (2.29mm ~ 4.06mm)
Base Product Number	520404
MSL Level	1 (Unlimited)
REACH Status	Vendor Undefined
ECCN	EAR99
HTSUS	8536.90.4000
Win Source Part Number	1364788-3-520404-2
Ultra Librarian 3D Model	Ultra Librarian 3-520404-2 CAD Model

Description

The 1364788-3-520404-2 quick disconnect connector is a high-performance component designed for use in electronic applications that require fast and reliable connections.

Manufacturer: TE Connectivity AMP Connectors
Series: Ultra-Fast Plus
Packaging: Tape and Reel
Wire Gauge: 14-16 AWG
Contact Finish: Tin
Insulation: Fully Insulated
Length: 0.855 inches (21.72mm)
Terminal Type: Crimp
Gender: Female
Tab Width: 0.187 inches (4.75mm)
Tab Thickness: 0.032 inches (0.81mm)
