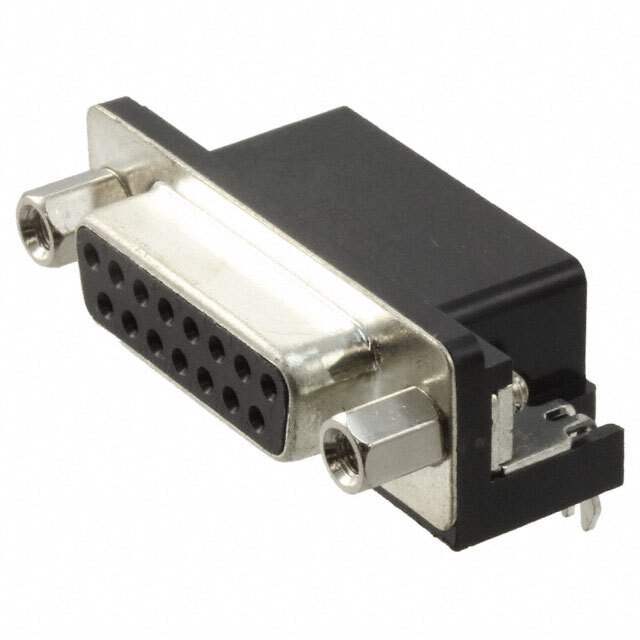

3-1634585-2TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

3-1634585-2

Part No 3-1634585-2
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 15POS R/A SLDR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1208526-3-1634585-2
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects -D-Sub, D-Shaped Connectors- D-Sub Connector Assemblies
Package Tray
Product Status Obsolete
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 15
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 2 (DA, A)
Flange Feature Mating Side, Female Screwlock (4-40)
Ultra Librarian 3D Model Ultra Librarian 3-1634585-2 CAD Model

Description

15 Position D-Sub Receptacle, Female Sockets Connector
