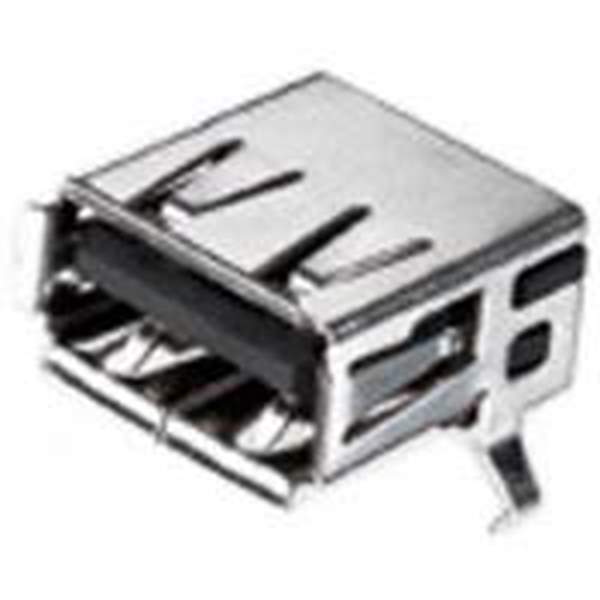

292303-6 Real Image
Same model may have multiple batches, images only for reference.

292303-6

Part No 292303-6
Manufacturer TE Connectivity
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB2.0 TYPEA 4POS R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Type USB - A
Number of Contacts 4
Gender Receptacle
Specifications USB 2.0
Mounting Style Through Hole, Right Angle
Mounting Feature Horizontal
Termination Solder
Features Board Lock
Temperature Range - Operating -55°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 1A per Contact
Voltage - Rated 30VAC
Mating Cycles 1500
Shielding Shielded
Contact Finish Gold or Gold-Palladium
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Insulation Color Black
Manufacturer Pack Quantity 30
MSL Level 1 (Unlimited)
Win Source Part Number 736182-292303-6
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 292303-6 CAD Model

Description

The TE Connectivity AMP Connectors 736182-292303-6 is a USB-A receptacle connector with a shielding feature.

  • Contacts: 4
  • USB Specification: USB 2.0
  • Voltage Rating: 30VAC
  • Current Rating: 1A per Contact
  • Mounting: Through-Hole, Right-Angle
  • Mounting Feature: Horizontal
  • Flammability Rating: UL94 V-0
  • Packaging: Tube
  • Mating Cycle: 1500
