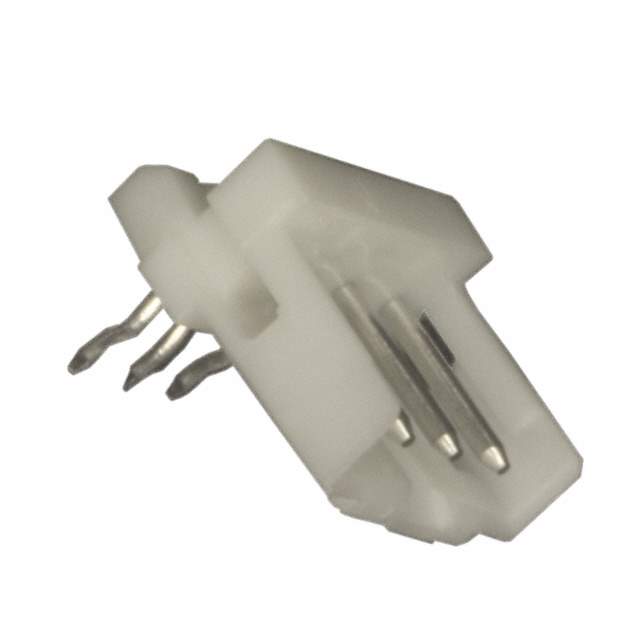

Part No 292253-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 3POS 2MM / Connector Header Through Hole, Right Angle 3 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series CT
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall
Mounting Type Through Hole, Right Angle
Termination Kinked Pin, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.177" (4.50mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.157" (4.00mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 125VAC
Applications General Purpose
Base Product Number 292253
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names -292253-3-SI,-292253-3-CSI,A98575,2922533,2266-292253-3
Standard Package 1,000
Win Source Part Number 1151674-292253-3
Ultra Librarian 3D Model Ultra Librarian 292253-3 CAD Model

Description

The TE Connectivity AMP Connectors 1151674-292253-3 is a rectangular connector that functions as a header with male pins.

  • Function: Header with male pins
  • Positions: 3
  • Loaded: All positions
  • Voltage Rating: 125VAC
  • Pitch-Mating: 0.079 inches
  • Contact Finish-Mating: Tin
  • Package: Bulk
  • Temperature Range: Not specified
  • Current Rating: Varies by wire gauge
