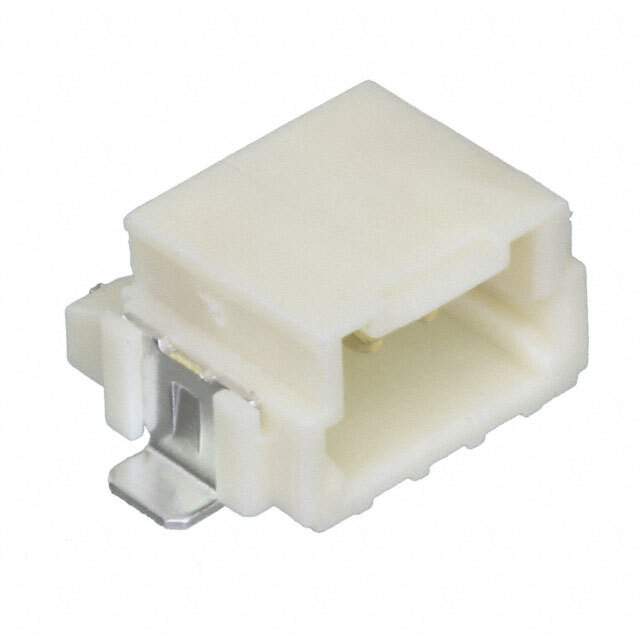

292228-3 Real Image
Same model may have multiple batches, images only for reference.

292228-3

Part No 292228-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 3POS 1.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Packaging Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.059" (1.50mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.094" (2.40mm)
Insulation Height 0.193" (4.90mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA6T), Nylon 6T, Glass Filled
Features Solder Retention
Temperature Range - Operating -30°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 50VAC
Applications General Purpose
Manufacturer Pack Quantity 700
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 810121-292228-3
Ultra Librarian 3D Model Ultra Librarian 292228-3 CAD Model

Description

The TE Connectivity AMP Connectors 292228-3 is a surface mount, right-angle header connector that comes in reel packaging.

  • Positions: 3
  • Contact Type: Male Pin
  • Termination: Solder
  • Contact Finish: Tin
  • Insulation Material: Polyamide (PA6T), Nylon 6T, Glass-Filled
  • Voltage Rating: 50VAC
  • Material Flammability Rating: UL94 V-0
  • Pitch: 0.059" (1.50mm)
  • Contact Length: 0.094" (2.40mm)
  • Insulation Height: 0.193" (4.90mm)
  • Supply & Demand Status: Limited
  • Manufacturer Pack Quantity: 700
  • MSL Level: 1 (Unlimited)
