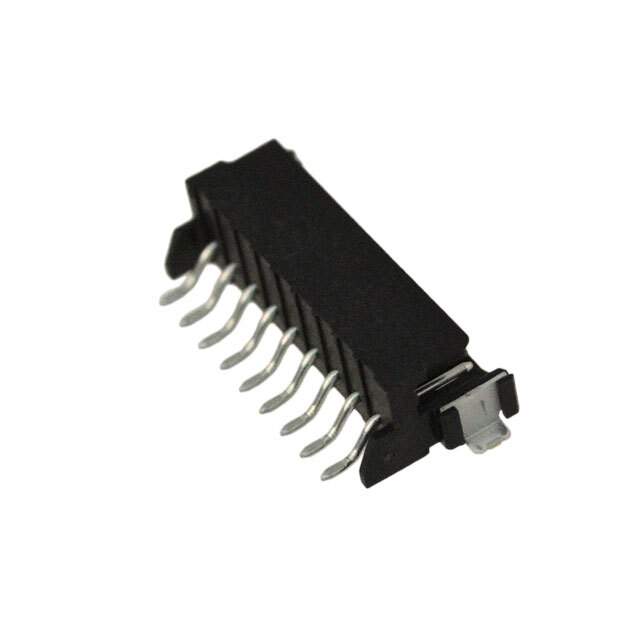

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series CT
Package Tape & Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 9
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.165" (4.20mm)
Insulation Height 0.228" (5.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA6T), Nylon 6T, Glass Filled
Features Board Guide, Solder Retention
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 125VAC
Applications General Purpose
Base Product Number 292173
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names -292173-9-SI,2266-292173-9,2921739,A98631CT,A98631DKR,A98631TR
Standard Package 1,000
Win Source Part Number 1001605-292173-9
Ultra Librarian 3D Model Ultra Librarian 292173-9 CAD Model

Description

The 292173-9 is a male pin header connector manufactured by TE Connectivity AMP Connectors.

  • Positions: 9-position
  • Connection: board-to-cable/wire
  • Pitch: 0.079"
  • Contact Finish: tin
  • Voltage: 125VAC
  • Application: general-purpose electronic applications
  • Packaging: tape and reel
  • AEC-Q200 Rated: Yes
  • Popularity: high
  • Fastening Type: detent lock
