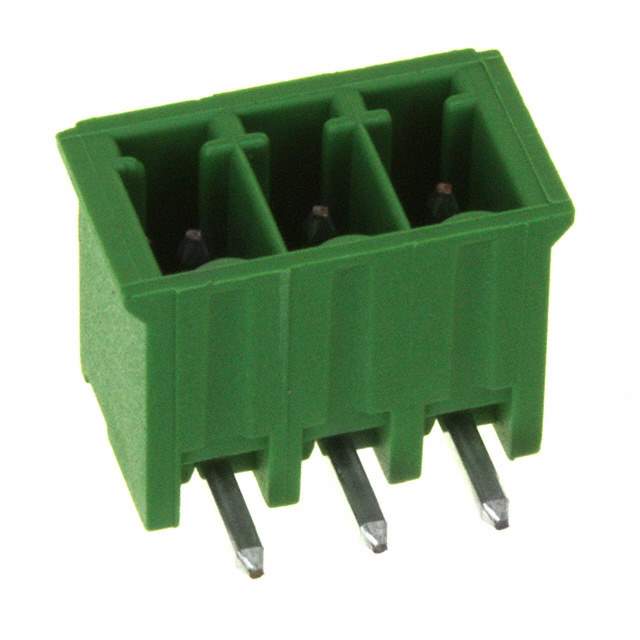

284512-3

Name: 284512-3
Brand: TE Connectivity
SKU: 1332280
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	284512-3
Manufacturer	TE Connectivity
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK HDR 3POS 90DEG 3.5MM / 3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	TE Connectivity AMP Connectors
Packaging	Bulk
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	3
Positions Per Level	3
Number of Levels	1
Pitch	0.138" (3.50mm)
Header Orientation	90°, Right Angle
Termination Style	Solder
Mounting	Through Hole
Current - UL	11 A
Voltage - UL	300 V
Color	Green
Temperature Range - Operating	-40°C ~ 110°C
Contact Mating Finish	Tin
Material Flammability Rating	UL94 V-0
Contact Material	Phosphor Bronze
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Tail Length	0.134" (3.40mm)
Insulation Height	0.287" (7.30mm)
Base Product Number	284512
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	284512-3-ND,2845123,A98397
Standard Package	200
Win Source Part Number	1332280-284512-3
Ultra Librarian 3D Model	Ultra Librarian 284512-3 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors 1332280-284512-3 is a male pin header connector with 3 positions per level and 3 levels.

Positions Per Level: 3
Number of Levels: 3
Pitch: 0.138" (3.50mm)
Color: Green
Temperature Range: -40°C ~ 110°C
ECCN: EAR99
RoHS Compliant: Yes
Popularity: High
Standard Package: 200
