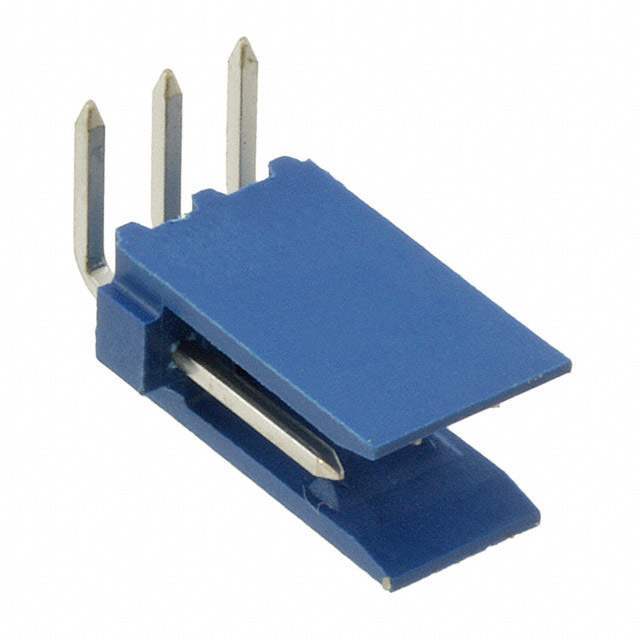

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1201595-281698-3
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Series HE13/HE14
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 3
Style Board to Cable/Wire
Shrouding Shrouded - 2 Wall
Ultra Librarian 3D Model Ultra Librarian 281698-3 CAD Model

Description

The 1201595 is a shrouded header connector from TE Connectivity AMP Connectors.

  • Series: HE13/HE14
  • Number of Rows: 1
  • Number of Positions: 3
  • Product Type: Header, Male Pins
  • Use: Board-to-Cable/Wire
  • Package: Bulk
  • Shrouded: Yes, 2 Walls
  • Pitch: 0.100" (2.54mm)
  • Product Status: Active
