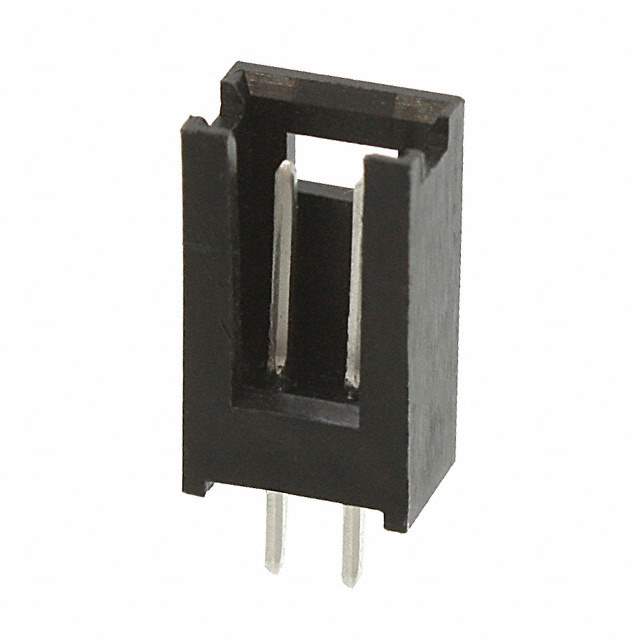

280370-1

Name: 280370-1
Brand: TE Connectivity
SKU: 814245
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	280370-1
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 2POS 2.54MM / AMPMODU II GEADER ASS, IES, STRAIGHT, SINGLE ROW
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	TE Connectivity AMP Connectors
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	2
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 3 Wall
Mounting Style	Through Hole
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.260" (6.60mm)
Contact Length - Post	0.138" (3.50mm)
Overall Contact Length	0.563" (14.30mm)
Insulation Height	0.496" (12.60mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	118.1μin (3.00μm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Thermoplastic
Temperature Range - Operating	-40°C ~ 80°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Voltage Rating	40V
Contact Finish Thickness - Post	118.1μin (3.00μm)
Manufacturer Pack Quantity	1,500
MSL Level	1 (Unlimited)
Popularity	Low
Supply and Demand Status	Limited
Win Source Part Number	814248-280370-1
Ultra Librarian 3D Model	Ultra Librarian 280370-1 CAD Model

Description

The TE Connectivity AMP Connectors 814248-280370-1 is a through-hole header connector with a male pin contact type.

Positions: 2 (Loaded)
Applications: Board-to-Board, Cable
Pitch-Mating: 0.100" (2.54mm)
Current Rating: 3A
Supply and Demand Status: Limited
Manufacturer Pack Quantity: 1,500
Insulation Color: Black
Shrouding: Shrouded - 3 Wall
