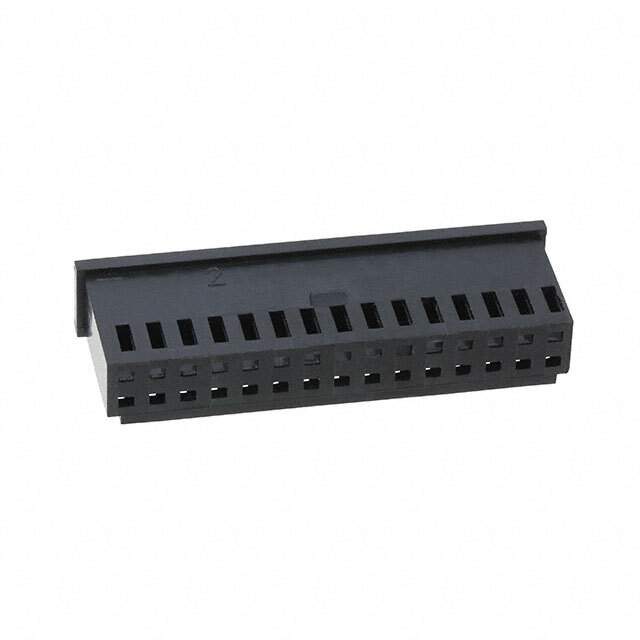

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Housings
Mfr TE Connectivity
Series AMPMODU Mod II
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 30
Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type -
Color Black
Features -
Insulation Material -
Temperature Range - Operating -
Note Contacts Not Included
Base Product Number 2803
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.6000
Standard Package 500 pcs
Win Source Part Number 1380707-280368
Ultra Librarian 3D Model Ultra Librarian 280368 CAD Model

Description

The 1380707-280368 is a rectangular connector housing from the AMPMODU Mod II series by TE Connectivity. It is a receptacle connector designed for female sockets with 30 positions.

  • Series: AMPMODU Mod II
  • Connector Type: Receptacle
  • Number of Positions: 30
  • Number of Rows: 2
  • Row Spacing: 0.100" (2.54mm)
  • Pitch: 0.100" (2.54mm)
  • Color: Black
  • Mounting Type: Free Hanging (In-Line)
  • Contact Termination: Crimp
  • Contacts Included: No
  • Moisture Sensitivity Level (MSL): 1 (Unlimited)
  • REACH: Unaffected
  • Manufacturer: TE Connectivity
