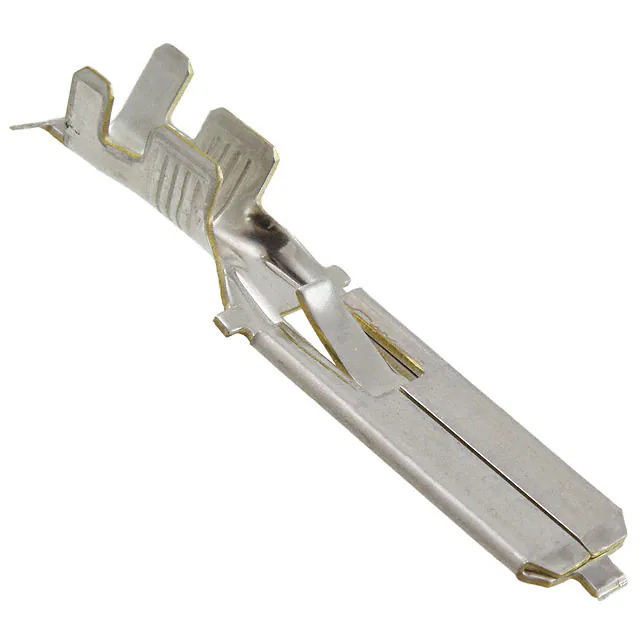

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Fastin-Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Male
Tab Width 0.375" (9.53mm)
Tab Thickness 0.048" (1.22mm)
Tab Length 0.843" (21.40mm)
Length - Overall 1.472" (37.40mm)
Termination Crimp
Wire Gauge 10-12 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.134" ~ 0.201" (3.40mm ~ 5.10mm)
Base Product Number 280075
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364753-280075-2
Ultra Librarian 3D Model Ultra Librarian 280075-2 CAD Model

Description

The TE Connectivity AMP Connectors Fastin-Faston series offers a reliable and efficient solution for quick connect and disconnect applications.

  • Terminal Type: Quick Connect, Disconnect
  • Gender: Male
  • Wire Gauge: 10-12 AWG
  • Finish: Tin
  • Insulation: Non-Insulated
  • Length - Overall: 1.472" (37.40mm)
  • Series: Fastin-Faston
