Same model may have multiple batches, images only for reference.

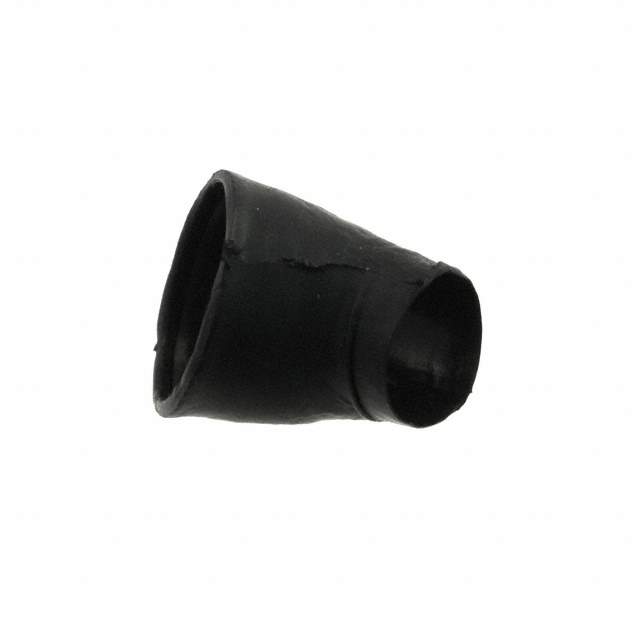

223W601-25-0 Real Image
Same model may have multiple batches, images only for reference.

223W601-25-0

Part No 223W601-25-0
Manufacturer TE Connectivity
Catalog Heat Shrink Boots, Caps
Description HEATSHRINK BOOT R/A SZ1 BLACK  /  Heat Shrink Boot - 90° Black 1
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cables, Wires - Management>Heat Shrink Boots, Caps
Mfr TE Connectivity Aerospace, Defense and Marine
Series Thermofit 223W6
Package Box
Type Boot - 90°
Shell Size - Insert 1
Features Abrasion Resistant, Chemical Resistant, Flame Retardant, Fluid Resistant, Heat Resistant, Lip, Strain Resistant
Color Black
Material Elastomer, Semi-Rigid, Irradiated
Large Diameter Supplied 0.394" (10.01mm)
Large Diameter Recovered 0.250" (6.35mm)
Small Diameter Supplied 0.236" (5.99mm)
Small Diameter Recovered 0.080" (2.03mm)
Large Recovered Length 0.453" (11.51mm)
Small Recovered Length 0.236" (5.99mm)
Total Length Recovered 0.492" (12.50mm)
Base Product Number 223W601
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 3926.90.9985
Other Names A101515,223W601250,CF1638-000
Standard Package 10
Win Source Part Number 1051822-223W601-25-0
Ultra Librarian 3D Model Ultra Librarian 223W601-25-0 CAD Model

Description

The Thermofit 223W6 Heat Shrink Boot is a high-quality component that is designed for cables and wires management. TE Connectivity Aerospace, Defense and Marine Thermofit 223W6 Heat Shrink Boot

  • Type: 90° Boot
  • Features: Abrasion-Resistant, Chemical-Resistant, Flame-Retardant, Fluid-Resistant, Heat-Resistant, Strain-Resistant
  • Package: Box
  • Standard Package: 10
  • Large Diameter Supplied: 0.394" (10.01mm)
  • Large Diameter Recovered: 0.250" (6.35mm)
  • Small Diameter Supplied: 0.236" (5.99mm)
  • Small Diameter Recovered: 0.080" (2.03mm)
  • Large Recovered Length: 0.453" (11.51mm)
  • Small Recovered Length: 0.236" (5.99mm)
  • Total Length Recovered: 0.492" (12.50mm)
  • Win Source Part Number: 1051822-223W601-25-0
