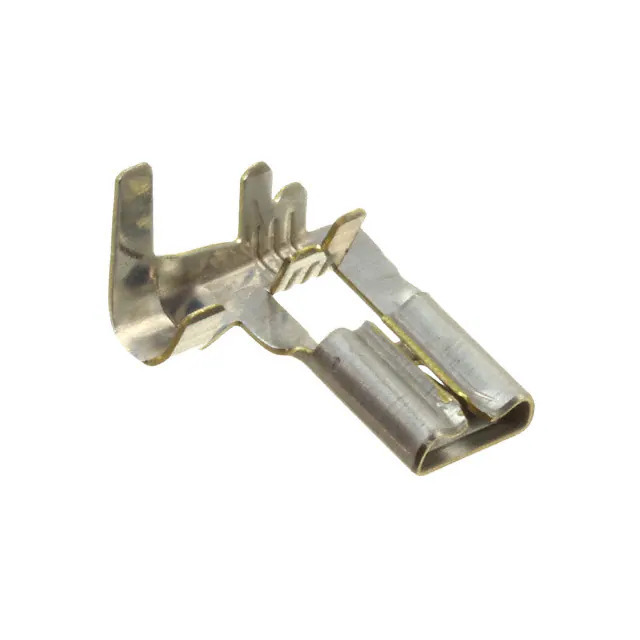

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Angled - 90°, Flag
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.032" (0.81mm)
Tab Length -
Length - Overall -
Termination Crimp
Wire Gauge 14-24 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line), Right Angle
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.067" ~ 0.149" (1.70mm ~ 3.79mm)
Base Product Number 2238172
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1365067-2238172-3
Ultra Librarian 3D Model Ultra Librarian 2238172-3 CAD Model

Description

The TE Connectivity AMP Connectors 2238172-3 is a quick connect terminal designed for use in connectors and interconnects.

  • Series: Faston
  • Terminal Type: Angled - 90°, Flag
  • Tab Width: 0.187" (4.75mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Contact Material: Brass
  • Contact Finish: Tin
  • Insulation: Non-Insulated
  • Wire Gauge: 14-24 AWG
  • Termination: Crimp
  • Product Status: Active
  • Packaging: Tape & Reel
