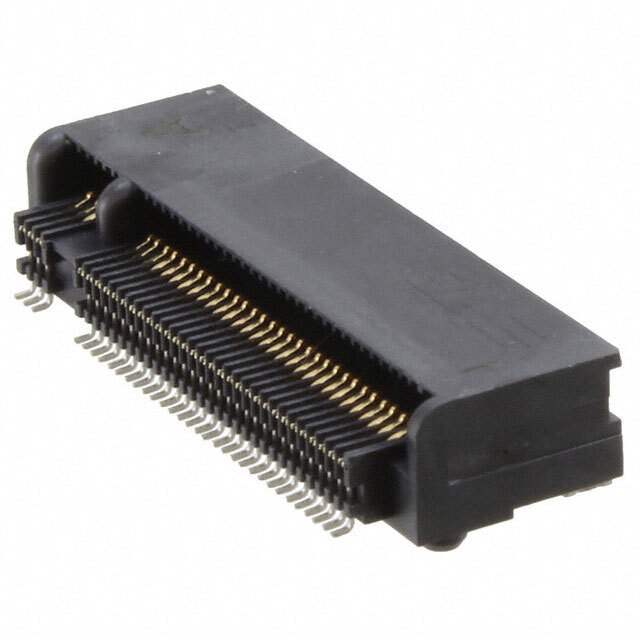

2199230-8 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

2199230-8

Part No 2199230-8
Manufacturer TE Connectivity
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN M.2 FMALE 67POS 0.020 GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1201373-2199230-8
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects -Card Edge Connectors -Edgeboard Connectors
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Card Type M.2 (NGFF) Mini Card
Gender Female
Number of Positions 67
Pitch 0.020" (0.50mm)
Features Board Guide, Keyed
Mounting Type Surface Mount, Right Angle
Ultra Librarian 3D Model Ultra Librarian 2199230-8 CAD Model

Description

The TE Connectivity AMP Connectors card edge connector is a reliable and versatile interconnect solution.

  • Positions: 67
  • Pitch: 0.020" (0.50mm)
  • Features: Board Guide, Keyed
  • Application: M.2 (NGFF) Mini Card
  • Mounting Type: Surface Mount, Right Angle
  • Status: Active
