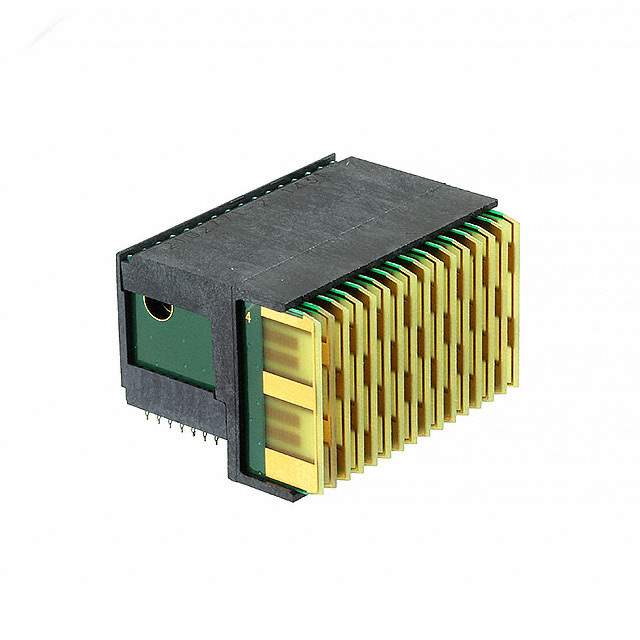

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors - Specialized
Mfr TE Connectivity Aerospace, Defense and Marine
Series MULTIGIG RT2-R
Package Tube
Connector Usage Daughtercard
Connector Type Plug, Male Blades
Connector Style MULTIGIG, Center
Number of Positions 112
Number of Positions Loaded All
Pitch 0.053" (1.35mm)
Number of Rows 7
Mounting Type Board Edge, Through Hole, Right Angle
Termination Press-Fit
Contact Finish Gold
Contact Finish Thickness 50.0µin (1.27µm)
Color Black
Current Rating (Amps) 0.750A
Material Flammability Rating UL94 V-0
Base Product Number 2102771
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names -2102771-2-SI,2266-2102771-2,A120195
Standard Package 17
Win Source Part Number 1227138-2102771-2
Ultra Librarian 3D Model Ultra Librarian 2102771-2 CAD Model

Description

The MULTIGIG RT2-R series connector is a specialized backplane connector designed for daughtercard usage.

  • Series: MULTIGIG RT2-R
  • Application: Daughtercard
  • Type: Plug
  • Gender: Male
  • Termination: Press-Fit
  • Positions: 112
  • Rows: 7
  • Pitch: 0.053 inches (1.35mm)
  • Contact Finish: Gold
  • Finish Thickness: 50.0μin (1.27μm)
  • Current Rating: 0.750A
  • Voltage Rating: - volts
  • Material Rating: UL94 V-0
  • Temperature Range: - degrees Celsius
  • Package: Tube
  • ECCN: EAR99
  • Cross-Reference: 2102771-2
