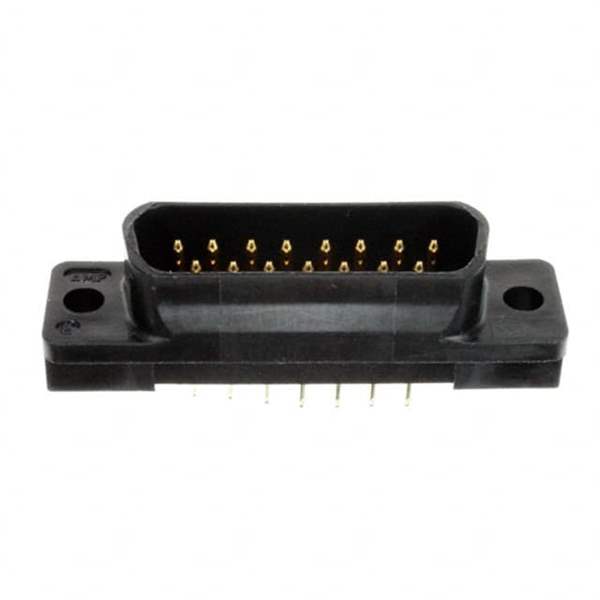

208007-2
Same model may have multiple batches, images only for reference.

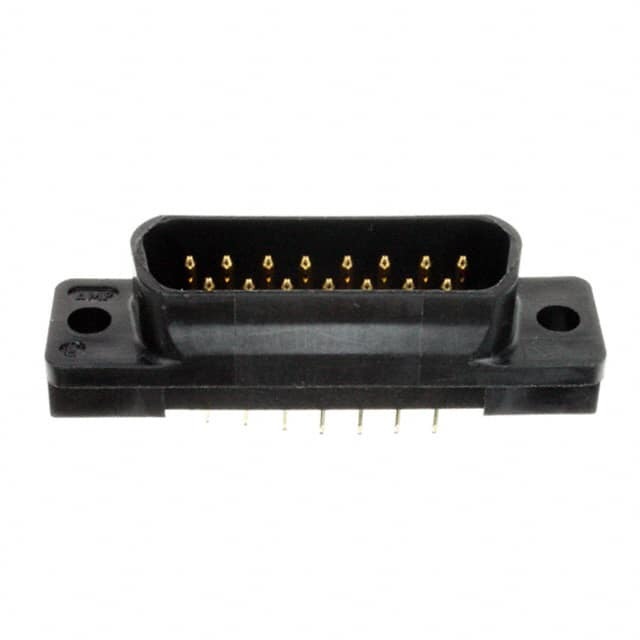

208007-2

Part No 208007-2
Manufacturer TE Connectivity
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 15POS VERT SLDR / 15 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr TE Connectivity
Series AMPLIMITE HD-20
Package Tube
Product Status Active
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 15
Number of Rows 2
Mounting Type Through Hole
Shell Size, Connector Layout 2 (DA, A)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6A
Voltage Rating 125V
Color Black
Dielectric Material Polyester
Contact Material Brass
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 208007
Standard Package 13 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 854532-208007-2
Ultra Librarian 3D Model Ultra Librarian 208007-2 CAD Model

Description

The TE Connectivity D-Sub connector assembly is a high-quality connector designed for various applications.

  • Series: AMPLIMITE HD-20
  • Positions: 15
  • Color: Black
  • Pins: Male
  • Contact Type: Signal
  • Termination: Solder
  • Contact Finish: Gold
  • Package: Tube
  • Mounting: Through-hole
  • Temperature Range: -55°C to 105°C
  • ECCN: EAR99
  • Product Status: Active
