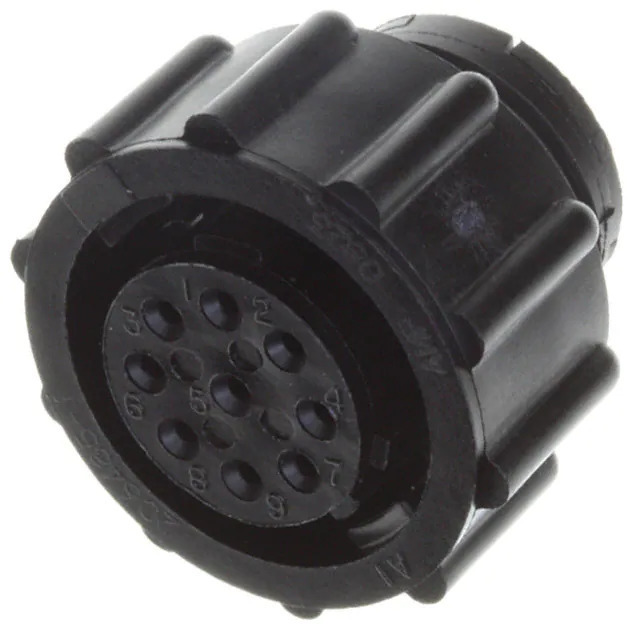

206485-1 TE Connectivity
Same model may have multiple batches, images only for reference.

206485-1

Part No 206485-1
Manufacturer TE Connectivity
Catalog Circular Connectors - Housings
Description CONN PLUG HSG FMALE 9POS INLINE / 9 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Housings
Mfr TE Connectivity AMP Connectors
Series CPC Series 2
Package Bulk
Product Status Active
Connector Type Plug Housing
Type For Female Sockets
Number of Positions 9
Shell Size - Insert 11-9
Shell Size, MIL -
Contact Type Crimp
Contact Size 20
Mounting Type Free Hanging (In-Line)
Mounting Feature -
Fastening Type Threaded
Orientation Keyed
Shell Material Polyamide (PA66), Nylon 6/6, Glass Filled
Shell Finish -
Housing Color Black
Ingress Protection -
Material Flammability Rating UL94 V-0
Features Coupling Nut
Shielding Unshielded
Note Contacts Not Included
Includes -
Insert Material Thermoplastic
Contact Shape Circular
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 206485
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1363709-206485-1
Ultra Librarian 3D Model Ultra Librarian 206485-1 CAD Model

Description

The TE Connectivity AMP Connectors CPC Series 2 is a circular connector housing designed for female sockets.

  • Number of Positions: 9
  • Fastening Type: Threaded
  • Temperature Range: -55°C to 105°C
  • Shielding: Unshielded
  • Material Flammability Rating: UL94 V-0
  • Shell Material: Polyamide (PA66), Nylon 6/6, Glass Filled
  • Housing Color: Black
  • Connector Type: Plug Housing
  • Contact Type: Crimp
  • Shell Size Insert: 11-9
  • Contact Size: 20
  • Product Status: Active
  • Base Product Number: 206485
