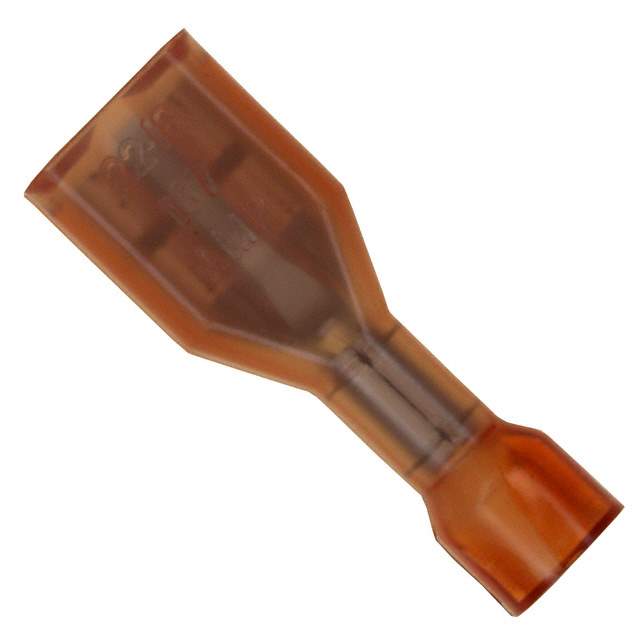

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Standard
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.032" (0.81mm)
Length - Overall 0.855" (21.72mm)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Fully Insulated
Mounting Free Hanging (In-Line)
Color Red
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.060" ~ 0.135" (1.52mm ~ 3.43mm)
Base Product Number 520403
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number -2-520403-2-CSI,-405736281-CSI-ND,-2-520403-2-SI,2-520403-2-ND,25204032,2266-2-520403-2TR,A27848CT,-405736281-SI-ND,A27847,-405736281-CSI,-405736281-SI,A27848TR,A27847-ND
Standard Package 2,700
Win Source Part Number 1333810-2-520403-2
Ultra Librarian 3D Model Ultra Librarian 2-520403-2 CAD Model

Description

TE Connectivity AMP Connectors 1333810-2-520403-2 is a female quick connect/disconnect terminal designed for 18-22 AWG wire gauge.

  • Insulation: Fully Insulated
  • Terminal Type: Standard
  • Overall Length: 0.855 inches
  • Tab Width: 0.187 inches
  • Tab Thickness: 0.032 inches
  • Insulation Diameter: 0.060 inches to 0.135 inches
  • Contact Material: Brass
  • Contact Finish: Tin
  • Packaging: Reel
  • Standard Package: 2700 pieces
  • Mounting: Free hanging (in-line)
  • ECCN: EAR99
  • ROHS3 Compliant: Yes
