Products specifications

Standard Package 2,700
Win Source Part Number 1333735-2-520401-2
Other Part Number 2266-2-520401-2TR,A27845,A27845-ND,-2-520401-2-CSI,A27846CT,25204012,A27846TR,-2-520401-2-SI,2-520401-2-ND
HTSUS 8536.90.4000
ECCN EAR99
REACH Status Vendor Undefined
MSL Level 1 (Unlimited)
RoHS Status ROHS3 Compliant
Base Product Number 520401
Insulation Diameter 0.060" ~ 0.135" (1.52mm ~ 3.43mm)
Contact Finish Tin
Contact Material Brass
Color Red
Mounting Free Hanging (In-Line)
Insulation Fully Insulated
Wire Gauge 18-22 AWG
Termination Crimp
Length - Overall 0.855" (21.72mm)
Tab Thickness 0.020" (0.51mm)
Tab Width 0.187" (4.75mm)
Gender Female
Terminal Type Standard
Packaging Reel - TR
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Ultra Librarian 3D Model Ultra Librarian 2-520401-2 CAD Model

Description

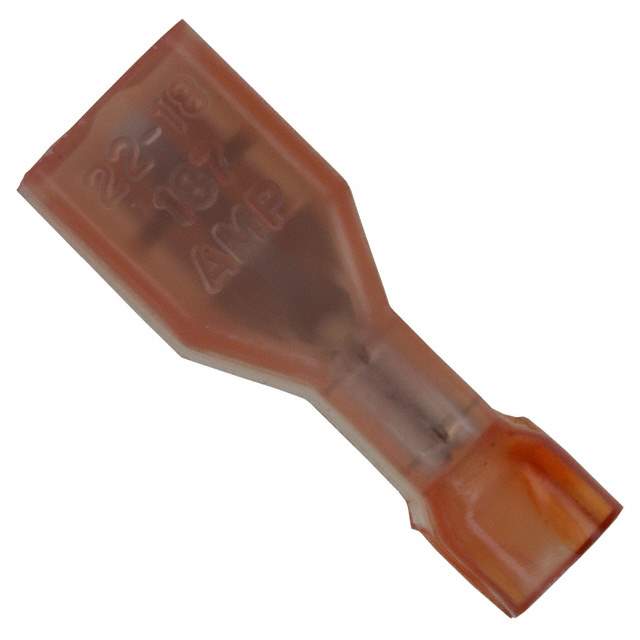

The TE Connectivity AMP Connectors 1333735-2-520401-2 is a female quick-disconnect connector with a fully insulated crimp termination.

  • Termination Type: Crimp
  • Insulation: Fully Insulated
  • Wire Gauge: 18-22 AWG
  • Contact Finish: Tin
  • Tab Width: 0.187" (4.75mm)
  • Tab Thickness: 0.020" (0.51mm)
  • Mounting: In-line
  • Package: Reel
  • Package Quantity: 2,700 pieces
  • RoHS3 Compliant: Yes
  • MSL Level: 1 (unlimited)
