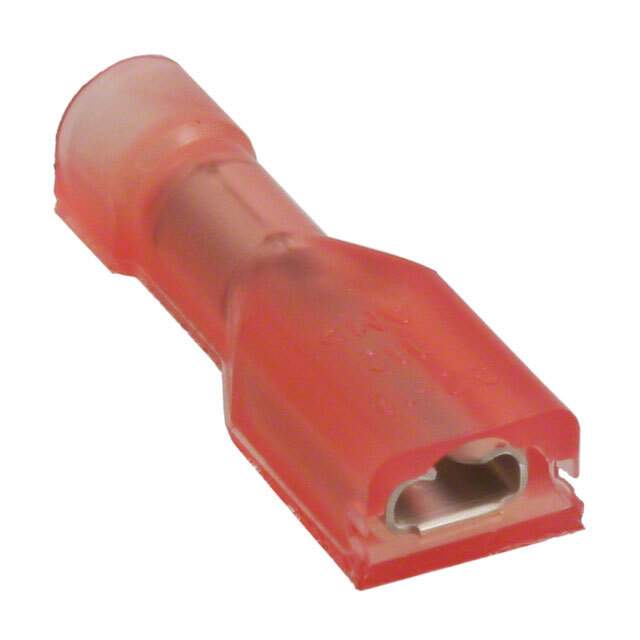

2-520272-2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Standard
Gender Female
Tab Width 0.110" (2.79mm), 0.125" (3.18mm)
Tab Thickness 0.032" (0.81mm)
Length - Overall 0.735" (18.67mm)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Fully Insulated
Mounting Free Hanging (In-Line)
Color Red
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.120" (3.05mm)
Base Product Number 520272
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number A27799CT,2-520272-2-ND,25202722,A27798,-2-520272-2-SI,A27798-ND,2266-2-520272-2TR,A27799TR
Standard Package 3,000
Win Source Part Number 1333456-2-520272-2
Ultra Librarian 3D Model Ultra Librarian 2-520272-2 CAD Model

Description

The 1333456-2-520272-2 is a female quick disconnect connector from TE Connectivity AMP Connectors.

  • Type: Female Quick Disconnect
  • Mounting: Free-Hanging (In-Line)
  • Standard Package: 3000
  • Color: Red
  • Insulation: Fully Insulated
  • Termination: Crimp
  • Contact Finish: Tin
  • Wire Gauge: 18-22 AWG
  • Length: 0.735 inches
  • Tab Width: 0.110 inches (2.79mm) and 0.125 inches (3.18mm)
  • Tab Thickness: 0.032 inches (0.81mm)
  • Insulation Diameter: 0.120 inches (3.05mm)
