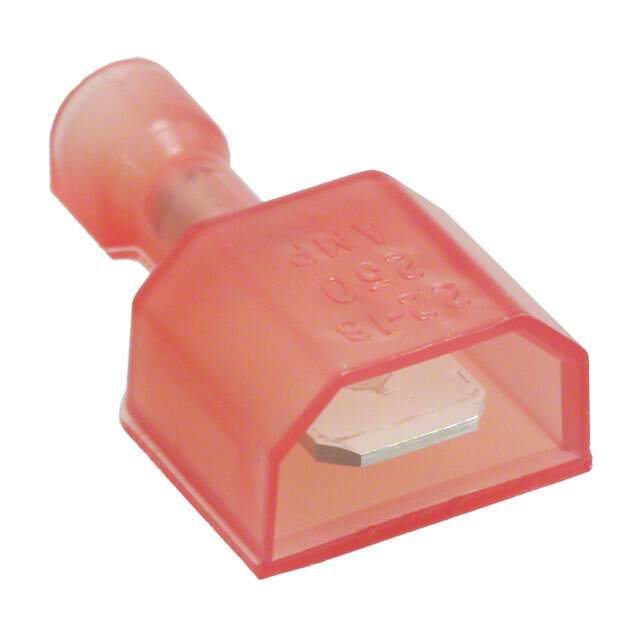

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Terminal Type Standard
Gender Male
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Length - Overall 0.855" (21.72mm)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Fully Insulated
Mounting Free Hanging (In-Line)
Color Red
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.135" (3.43mm)
Base Product Number 520103
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number -HUB-FULLINSUL-22-18M-CSI-ND,-2-520103-2-SI,-HUB-FULLINSUL-22-18M-SI-ND,2-520103-2-ND,-2-520103-2-CSI,-HUB-FULLINSUL-22-18M-SI,A27906,-HUB-FULLINSUL-22-18M-CSI,25201032
Standard Package 1,000
Win Source Part Number 1333668-2-520103-2
Ultra Librarian 3D Model Ultra Librarian 2-520103-2 CAD Model

Description

The TE Connectivity AMP Connectors 1333668-2-520103-2 is an electronic component that is designed as a quick connect, quick disconnect connector.

  • Color: Red
  • Termination Style: Crimp
  • Contact Finish: Tin
  • Wire Gauge: 18-22 AWG
  • Contact Material: Brass
  • Gender: Male
  • Standard Package: 1,000
  • Mounting: Free Hanging (In-Line)
  • Terminal Type: Standard
  • Overall Length: 0.855" (21.72mm)
  • Insulation: Fully Insulated
  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Insulation Diameter: 0.135" (3.43mm)
  • MSL Level: 1 (Unlimited)
  • REACH Status: Vendor Undefined
  • HTSUS: 8536.90.4000
  • RoHS3 Compliant: Yes
