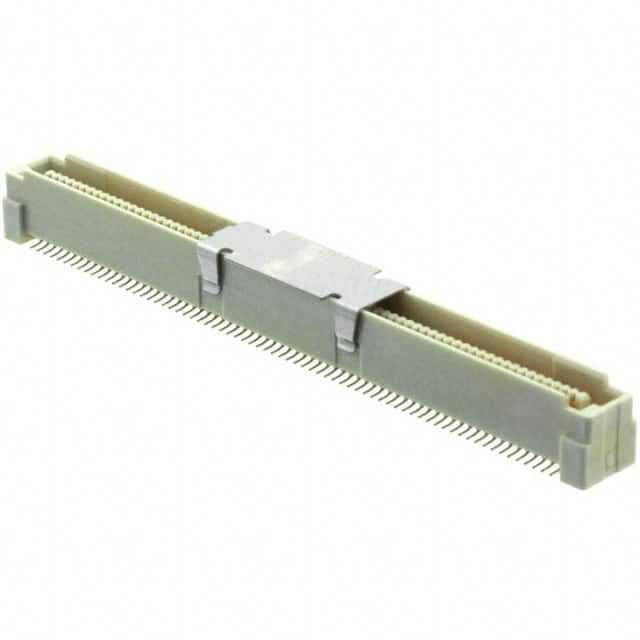

2-5177986-6
Same model may have multiple batches, images only for reference.

2-5177986-6

Part No 2-5177986-6
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN PLUG 140POS SMD GOLD / 140 Position Connector Plug, Center Strip Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr TE Connectivity
Series Free Height (FH)
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Connector Type Plug, Center Strip Contacts
Number of Positions 140
Pitch 0.031" (0.80mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Mated Stacking Heights 7mm, 11mm, 15mm, 19mm
Height Above Board 0.270" (6.85mm)
Base Product Number 5177986
Standard Package 450 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 848015-2-5177986-6
Ultra Librarian 3D Model Ultra Librarian 2-5177986-6 CAD Model

Description

The 789338 is a rectangular connector array designed for board-to-board connections.

  • Category: Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
  • Positions: 140
  • Pitch: 0.031" (0.80mm)
  • Board Guide: Yes
  • Connector Type: Plug
  • Contact Type: Center Strip
  • Rows: 2
  • Contact Finish: Gold
  • Package Options: Tape & Reel, Cut Tape
  • Mated Stacking Heights: 7mm, 11mm, 15mm, 19mm
  • Height Above Board: 0.270" (6.85mm)
  • Standard Package: 450 pcs
  • Mounting Type: Surface Mount
  • Status: Active
  • Manufacturer: TE Connectivity
