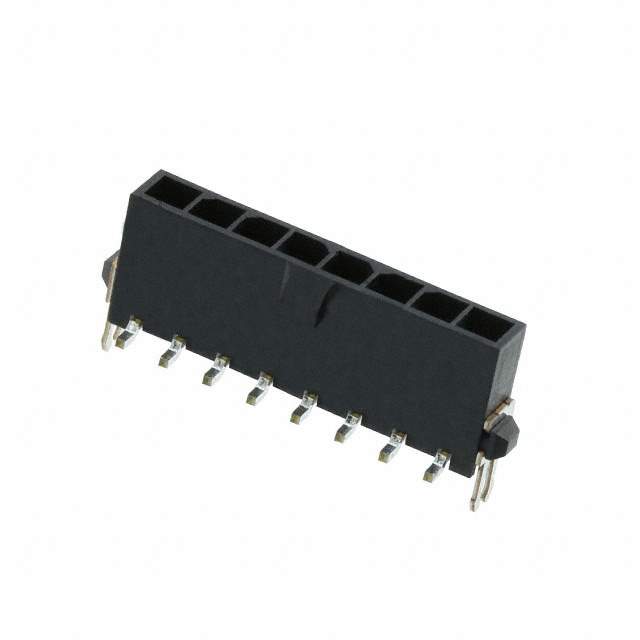

2-1445095-8

Part No 2-1445095-8
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER 8POS VERT SMD 30GOLD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 8
Number of Positions Loaded All
Number of Rows 1
Mounting SMD (SMT)
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.364" (9.25mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30μin (0.76μm)
Contact Finish - Post Tin
Insulation Material Polyamide (PA), Nylon
Features Board Lock, Pick and Place
Temperature Range - Operating -40°C to 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating Varies by Wire Gauge
Voltage Rating 250V
Contact Finish Thickness - Post 100μin (2.54μm)
Applications General Purpose
Win Source Part Number 197394-2-1445095-8
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 2-1445095-8 CAD Model

Description

Description:

The 2-1445095-8 connector is well-regarded for its ease of use and robust construction. Designed for quick assembly and enhanced connectivity performance, this component is integral in various connection-critical applications.

Applications/Projects:

  • Data communication networks
  • Automotive systems
  • Renewable energy installations
  • Industrial machinery

Features and Benefits:

  • Quick-connect functionality saving time during installation
  • Durable materials resistant to environmental degradation
  • Supports a wide range of cable types
  • High connectivity consistency reducing signal loss

With the 2-1445095-8, users enjoy dependable performance and easy installation, making it suitable for professionals in demanding fields where uptime is paramount.
