Same model may have multiple batches, images only for reference.

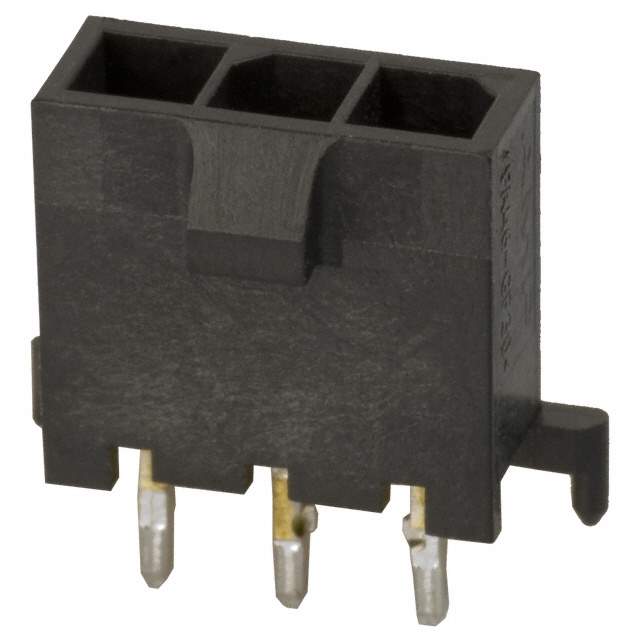

2-1445093-3 Real Image
Same model may have multiple batches, images only for reference.

2-1445093-3

Part No 2-1445093-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 3POS 3MM / Connector Header Through Hole 3 position 0.118" (3.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Press-Fit, Solder
Fastening Type Locking Ramp
Contact Length - Post 0.125" (3.18mm)
Insulation Height 0.364" (9.25mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Board Guide
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250V
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications General Purpose
Base Product Number 1445093
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 214450933,A33198
Standard Package 350
Win Source Part Number 1334199-2-1445093-3
Ultra Librarian 3D Model Ultra Librarian 2-1445093-3 CAD Model

Description

The TE Connectivity AMP Connectors 1334199-2-1445093-3 is a 3-position male pin header connector that comes with a board guide.

  • Positions: 3
  • Voltage Rating: 250V
  • Design: Shrouded 4-wall
  • Insulation Material: Polyamide (PA) or Nylon
  • Pitch-Mating: 0.118 inches (3.00mm)
  • Contact Finish-Mating: Gold with a thickness of 30.0µin (0.76µm)
  • Contact Finish-Post: Tin with a thickness of 100.0µin (2.54µm)
  • Temperature Range: -40°C to 105°C
  • RoHS Compliant: Yes
  • Manufacturer: TE Connectivity AMP Connectors
