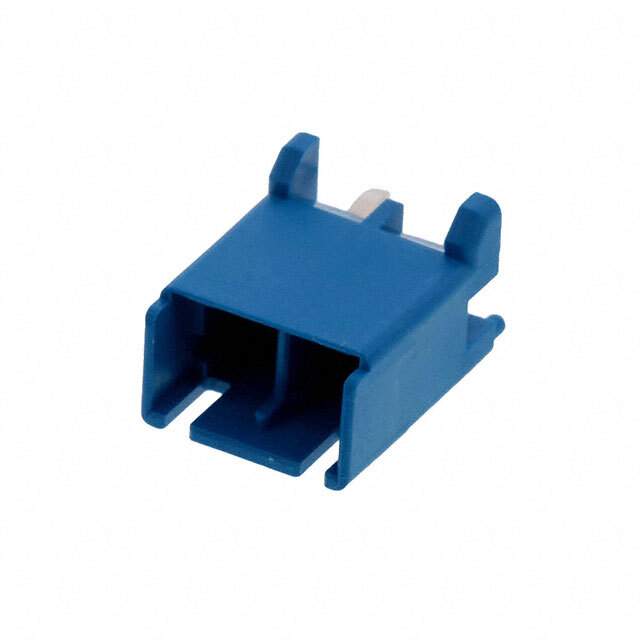

2-1376382-3 Real Image
Same model may have multiple batches, images only for reference.

2-1376382-3

Part No 2-1376382-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 2POS 5MM / Connector Header Through Hole 2 position 0.197" (5.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header
Contact Type Tab
Pitch - Mating 0.197" (5.00mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Kinked Pin, Solder
Fastening Type Locking Ramp
Contact Length - Post 0.138" (3.50mm)
Insulation Height 0.555" (14.10mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Features Board Guide
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Blue
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 300VAC
Mated Stacking Heights 19.4mm
Applications General Purpose
Base Product Number 1376382
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 2-1376382-3-ND,2266-2-1376382-3,-2-1376382-3-SI,A131059
Standard Package 200
Win Source Part Number 1334298-2-1376382-3
Ultra Librarian 3D Model Ultra Librarian 2-1376382-3 CAD Model

Description

The TE Connectivity AMP Connectors electronic component with Win Source Part Number 1334298-2-1376382-3 is a male pin header connector that has a voltage rating of 300VAC. This product is of high quality and is reliable.

  • Win Source Part Number: 1334298-2-1376382-3
  • Connector Type: Male Pin Header
  • Voltage Rating: 300VAC
  • Quality: High Quality
  • Reliability: Reliable
  • Supply and Demand: Balanced
