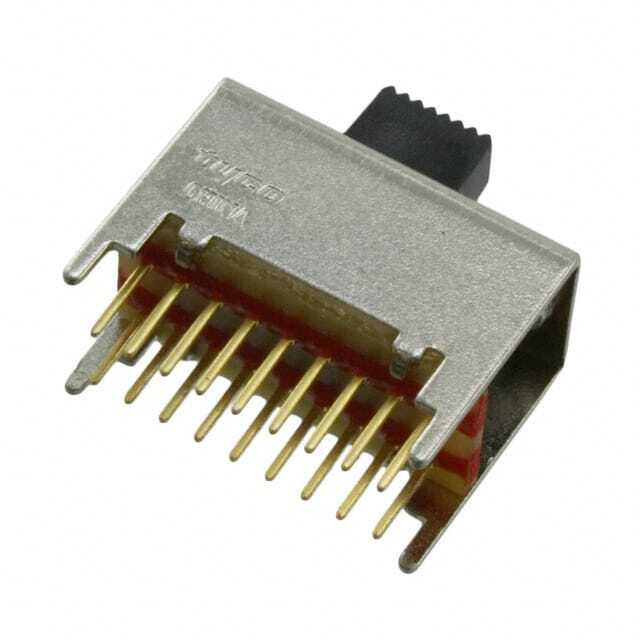

Same model may have multiple batches, images only for reference.
1825271-2
Same model may have multiple batches, images only for reference.

1825271-2

Part No 1825271-2
Manufacturer TE Connectivity
Catalog Slide Switches
Description SWITCH SLIDE 6PDT 0.4VA 20V / Slide Switch 6PDT Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Slide Switches
Mfr TE Connectivity
Series MSS
Package Bulk
Product Status Obsolete
Circuit 6PDT
Contact Timing Shorting (MBB)
Switch Function On-On
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Standard
Actuator Length 6.00mm
Contact Material Copper Alloy
Contact Finish Gold
Mounting Type Through Hole
Termination Style PC Pin
Features Epoxy Sealed Terminals
Temperature Range - Operating -20°C ~ 85°C
Actuator Material Polyoxymethylene (Acetal) (POM)
Switch Travel 2.00mm
Mechanical Life 15,000 Cycles
Electrical Life 15,000 Cycles
Operating Force 600gf
Base Product Number 1825271
Standard Package 150 pcs
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 905607-1825271-2
Ultra Librarian 3D Model Ultra Librarian 1825271-2 CAD Model

Description

The MSS series slide switch is a high-quality switch designed for various applications.

  • Series: MSS series
  • Terminals: Epoxy sealed
  • Circuit Configuration: 6PDT
  • Contact Timing: Shorting (MBB)
  • Function: On-On
  • Actuator Type: Standard
  • Actuator Length: 6.00mm
  • Switch Travel: 2.00mm
  • Electrical Life: 15,000 cycles
  • Operating Force: 600gf
  • Mechanical Life: 15,000 cycles
  • Mounting: Through hole
  • Temperature Range: -20°C to 85°C
  • Contact Finish: Gold
  • Contact Material: Copper alloy
