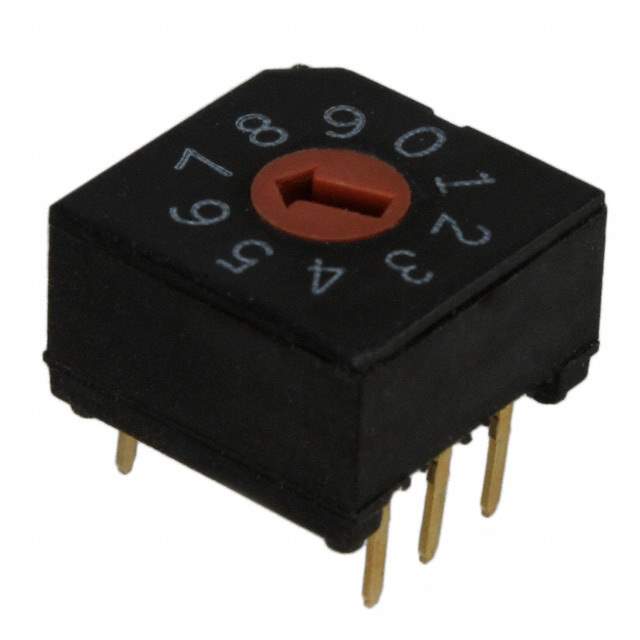

1825007-5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer TE Connectivity ALCOSWITCH Switches
Series DRD
Packaging Reel package
Circuit BCD Complement
Number of Positions 10
Current Rating 0.4VA
Voltage Rating 20VAC/DC
Actuator Type Rotary for Tool
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.291" (7.39mm)
Mounting SMD
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Body Material Polyphenylene Sulfide (PPS)
Length 0.393" (10.00mm)
Operating Temperature Range -30°C ~ 85°C
Mechanical Life 10,000 Steps
Electrical Life 10,000 Steps
Win Source Part Number 760686-1825007-5
Popularity Medium
Supply and Demand Status Limited
Family Name 1825007
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin United States of America
Halogen Free Not Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian 1825007-5 CAD Model

Description

TE Connectivity ALCOSWITCH Switches DRD series is a high-quality rotary switch that is suitable for BCD complement circuits.

  • Termination Style: Gull Wing
  • Mounting: SMD, Surface
  • Voltage Rating: 20VAC/DC
  • Current Rating: 0.4VA
  • Height Above Board: 0.291" (7.39mm)
  • Length: 0.393" (10.00mm)
  • Actuator Type: Rotary for tool
  • Electrical and Mechanical Life: 10,000 steps
  • Actuator Level: Flush and Recessed
  • Washable: Yes
  • Material: Polyphenylene Sulfide (PPS)
  • Operating Temperature Range: -30°C ~ 85°C
  • Package: Reel
  • Positions: 10
  • Pitch: 0.100" (2.54mm), Full
  • ECCN: EAR99
  • Popularity: Medium
