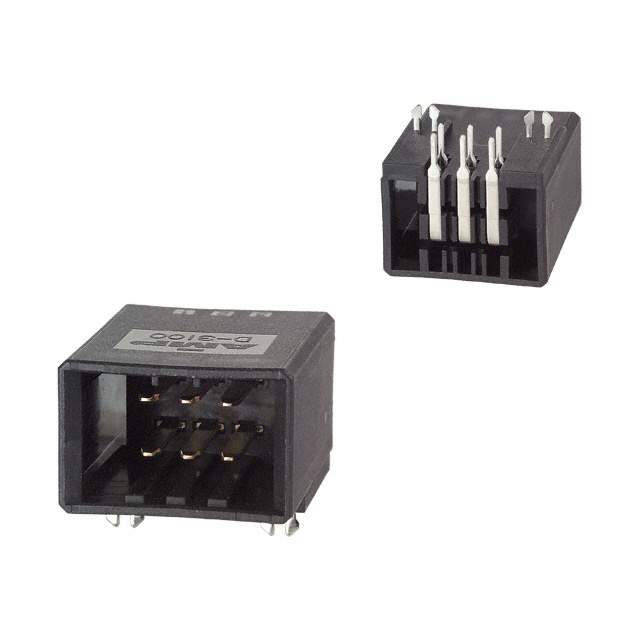

178303-2 Real Image
Same model may have multiple batches, images only for reference.

178303-2

Part No 178303-2
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HDR 6POS DUAL R/A 15GOLD
Datasheet
178303-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series Dynamic D-3100
Packaging Bulk
Connector Type Header
Contact Type Tab
Pitch - Mating 0.150" (3.81mm)
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Number of Positions 6
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.200" (5.08mm)
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Post 0.150" (3.81mm)
Insulation Height 0.568" (14.43mm)
Contact Shape Rectangular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15μin (0.38μm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic, Polyester, Glass Filled
Features Board Lock
Operating Temperature Range -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Voltage Rating 250V
Applications General Purpose, Industrial
Win Source Part Number 760635-178303-2
Popularity Medium
Supply and Demand Status Limited
Family Name 178303
Introduction Date May 24, 2006
ECCN EAR99
Country of Origin China
Halogen Free Not Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 178303-2 CAD Model

Description

The TE Connectivity AMP Connectors 760635-178303-2 is a dynamic D-3100 header connector with 6 positions. The connector is shrouded with 4 walls and has a pitch of 0.150" (3.81mm).

  • Series: Dynamic D-3100
  • Positions: 6
  • Shrouding: 4 Walls
  • Pitch: 0.150" (3.81mm)
  • Contact Finish (Mating): Gold (15μin (0.38μm))
  • Contact Finish (Post): Tin
  • Applications: Board-to-board or cable
  • Operating Temperature: -55°C ~ 105°C
  • Mounting Style: Through hole, Right Angle
  • Fastening Type: Detent Lock
  • Insulation Material: Thermoplastic, Polyester, Glass-Filled
