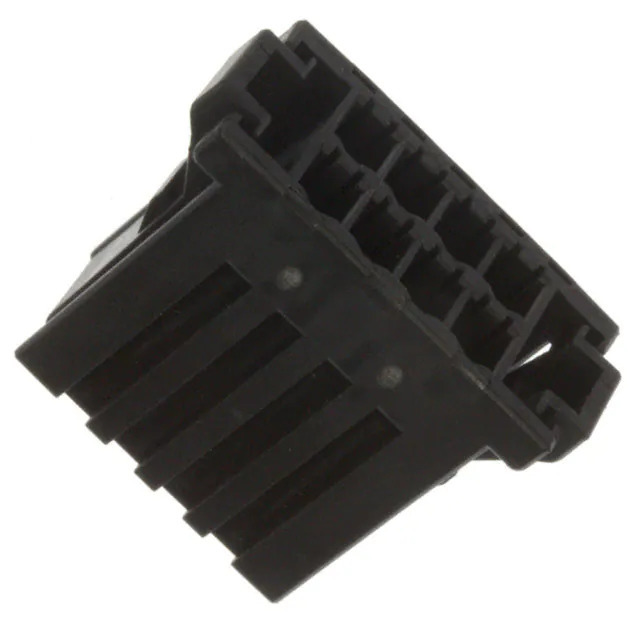

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr TE Connectivity AMP Connectors
Series Dynamic D-3100
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 8
Pitch 0.150" (3.81mm)
Number of Rows 2
Row Spacing 0.200" (5.08mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type -
Color Black
Features -
Temperature Range - Operating -55°C ~ 105°C
Note Contacts Not Included
Base Product Number 178289
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1365572-178289-4
Ultra Librarian 3D Model Ultra Librarian 178289-4 CAD Model

Description

The TE Connectivity AMP Connectors Dynamic D-3100 is a rectangular connector housing designed for use in various electronic applications from TE Connectivity AMP Connectors.

  • Mounting Type: Free Hanging (In-Line)
  • Termination: Crimp
  • Temperature Range: -55°C to 105°C
  • Connector Type: Receptacle
  • Positions: 8
  • Rows: 2
  • Package: Bulk
  • Product Line: Active
