Same model may have multiple batches, images only for reference.

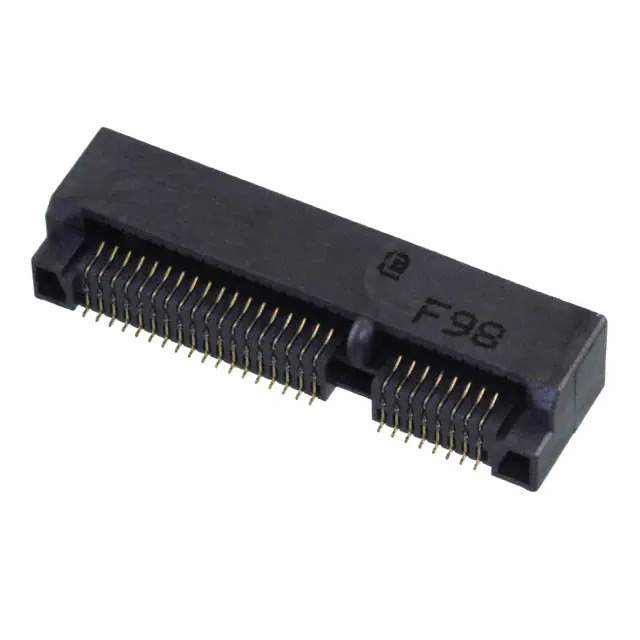

1775838-2 Real Image
Same model may have multiple batches, images only for reference.

1775838-2

Part No 1775838-2
Manufacturer TE Connectivity
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN PCI EXP MIN FML 52POS 0.031 / 52 Position Female Connector PCI Express Mini Card Gold 0.031" (0.80mm) Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Card Edge Connectors - Edgeboard Connectors
Mfr TE Connectivity
Package Tape & Reel
Product Status Active
Card Type PCI Express Mini Card
Gender Female
Number of Positions/Bay/Row 8; 18
Number of Positions 52
Card Thickness 0.039" (1.00mm)
Number of Rows 2
Pitch 0.031" (0.80mm)
Read Out Dual
Features Board Guide
Mounting Type Surface Mount, Right Angle
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness Flash
Color Black
Temperature Range - Operating -55°C ~ 85°C
Material - Insulation Liquid Crystal Polymer (LCP), Glass Filled
Base Product Number 1775838
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 849097-1775838-2
Ultra Librarian 3D Model Ultra Librarian 1775838-2 CAD Model

Description

The 790198 is a black female card edge connector manufactured by TE Connectivity.

  • Category: Connectors and Interconnects, Edgeboard Connectors
  • Positions: 52
  • Pitch: 0.031" (0.80mm)
  • Board Guide: Yes
  • Termination: Soldering
  • Contact Finish: Gold with a flash finish thickness
  • Contact Material: Copper Alloy
  • Insulation Material: Liquid Crystal Polymer (LCP) with glass filling
  • Application: PCI Express Mini Cards
  • Card Thickness: 0.039" (1.00mm)
  • Mounting: Surface Mounted or Right Angle
  • Operating Temperature Range: -55°C to 85°C
  • Standard Package: 500 pieces
