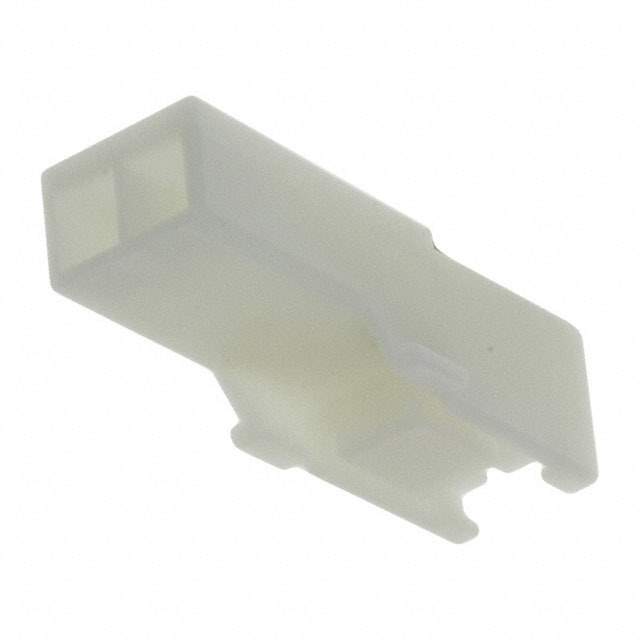

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr TE Connectivity AMP Connectors
Series Universal Power
Package Bulk
Connector Type Receptacle
Contact Type Tab
Number of Positions 2
Pitch 0.156" (3.96mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color Natural
Note Contacts Not Included
Base Product Number 176282
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.6000
Other Names -176282-1-SI,1762821,-176282-1-CSI
Standard Package 1,000
Win Source Part Number 1169932-176282-1
Ultra Librarian 3D Model Ultra Librarian 176282-1 CAD Model

Description

The 176282-1 is a connector housing manufactured by TE Connectivity AMP Connectors.

  • Series: Universal Power
  • Package: Bulk
  • Pieces: 1,000 Standard
  • Fastening Type: Latch Lock
  • Mounting Type: Free Hanging (In-Line)
