Part No 1761681-9
Manufacturer TE Connectivity
Catalog Rectangular Connectors

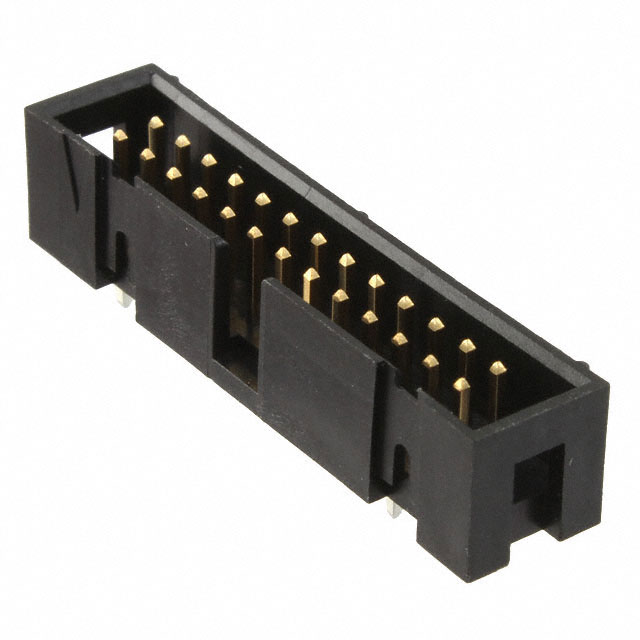

Description CONN HEADER IDC 26POS VERT GOLD
Datasheet
1761681-9 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series AMP-Latch
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 26
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Style Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.114" (2.90mm)
Insulation Height 0.350" (8.89mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15μin (0.38μm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT)
Features Keying Slot
Operating Temperature Range -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 1A per Contact
Voltage Rating 250VAC
Contact Finish Thickness - Post 100μin (2.54μm)
Win Source Part Number 760630-1761681-9
Popularity Medium
Supply and Demand Status Limited
Family Name 1761681
Introduction Date March 09, 2005
ECCN EAR99
Country of Origin China
Halogen Free Not Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 1761681-9 CAD Model

Description

The TE Connectivity AMP Connectors 760630-1761681-9 is a 26-position male pin header connector.

  • Positions: 26
  • Applications: Board-to-cable/wire
  • Pitch: 0.100 inches (2.54mm)
  • Shrouding: 4-wall
  • Contact Material: Phosphor Bronze
  • Contact Finish (Mating): Gold
  • Contact Finish (Post): Tin
  • Voltage Rating: 250VAC
  • Current Rating: 1A per contact
  • Operating Temperature: -65°C to 105°C
  • Material Flammability Rating: UL94 V-0
  • Features: Keying Slot, Push-Pull Fastening
