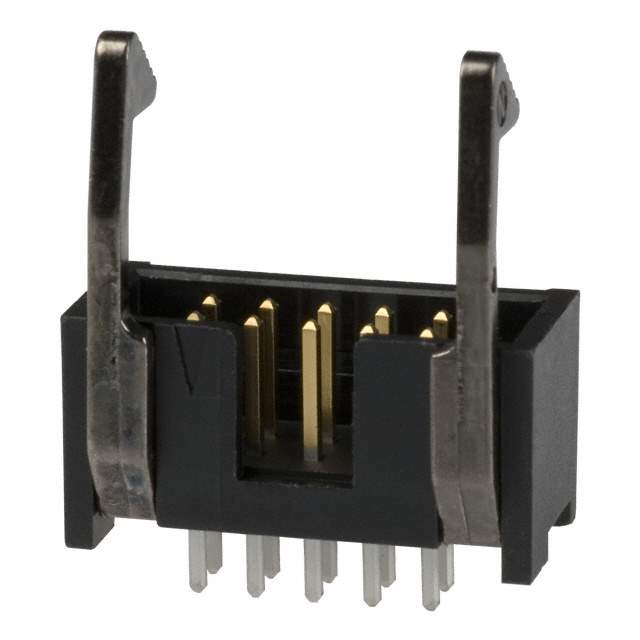

1761606-3 Real Image
Same model may have multiple batches, images only for reference.

1761606-3

Part No 1761606-3
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER PIN 10POS VERT GOLD
Datasheet
1761606-3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tube/Rail
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 2.54mm
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 10
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Long
Contact Length - Mating 0.237" (6.02mm)
Contact Length - Post 0.102" (2.60mm)
Insulation Height 0.404" (10.26mm)
Contact Shape Square
Contact Finish - Mating Gold or Gold-Palladium
Contact Finish Thickness - Mating 30μin (0.76μm)
Contact Finish - Post Tin
Insulation Material Polybutylene Terephthalate (PBT)
Features Keying Slot
Temperature Range - Operating -65°C to 105°C
Material Flammability Rating UL94 V-0
Insulation Color Blue
Current Rating 1A per Contact
Voltage Rating 250VAC
Contact Finish Thickness - Post 100μin (2.54μm)
Win Source Part Number 005263-1761606-3
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1761606-3 CAD Model

Description

Description

The 1761606-3 component is famed for its intuitive design and reliability, performing efficiently in a multitude of applications. This component is a great asset for achievers who prioritize precision.

Features and Benefits

  • High Reliability: Known for unsurpassed dependability and longevity in use.
  • Simplified Usability: Streamlined design ensures user-friendly operation.
  • Precision Focused: Built to deliver accurate results in complex environments.

Applications

  • Data Transmission Devices
  • Environmental Monitoring Equipment
  • 3D Printing Technology
  • Security Systems

Additional Details

Whether for revolutionary tech projects or routine electronic setups, the 1761606-3 ensures efficiency and performance.
