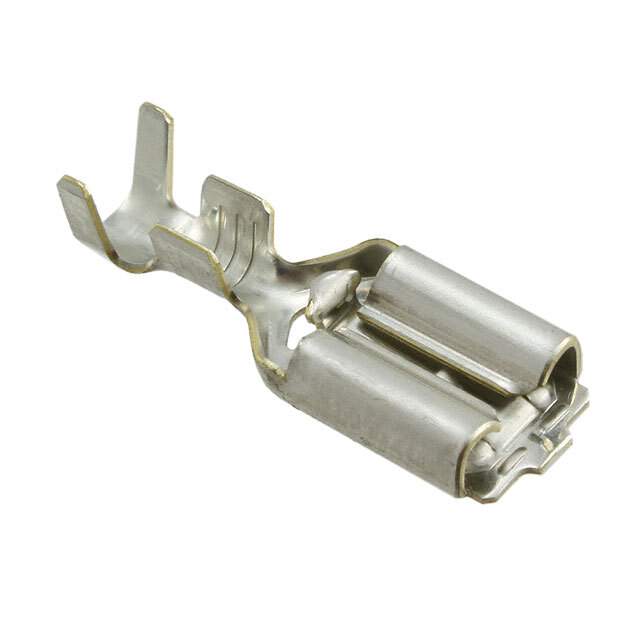

175022-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Positive Lock EX
Package Tape & Reel (TR),Cut Tape (CT)
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.307" (7.80mm)
Length - Overall 0.836" (21.23mm)
Termination Crimp
Wire Gauge 14-18 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.087" ~ 0.134" (2.21mm ~ 3.40mm)
Base Product Number 175022
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names -175022-1-SI,175022-1-ND,-175022-1-CSI,A100480CT,1750221,A100480TR,2266-175022-1TR
Standard Package 4,500
Win Source Part Number 1137533-175022-1
Ultra Librarian 3D Model Ultra Librarian 175022-1 CAD Model

Description

This electronic component is a Positive Lock EX female connector, suitable for use in terminals and quick disconnect connectors. The Positive Lock EX female connector is manufactured by unknown.

  • Type: Terminals, Quick Disconnect
  • Termination: Crimp
  • Material: Brass
  • Contact Finish: Tin
  • Packaging: Tape and Reel (TR) / Cut Tape (CT)
  • Quantity: 4,500
  • Wire Gauge: 14-18 AWG
  • Overall Length: 0.836 inches (21.23mm)
  • Insulated: No
  • Tab Width: 0.250 inches (6.35mm)
  • Tab Thickness: 0.032 inches (0.81mm)
  • Tab Length: 0.307 inches (7.80mm)
  • Insulation Diameter: 0.087 inches to 0.134 inches (2.21mm to 3.40mm)
  • Mounting: Free Hanging (In-Line)
  • ECCN: EAR99
