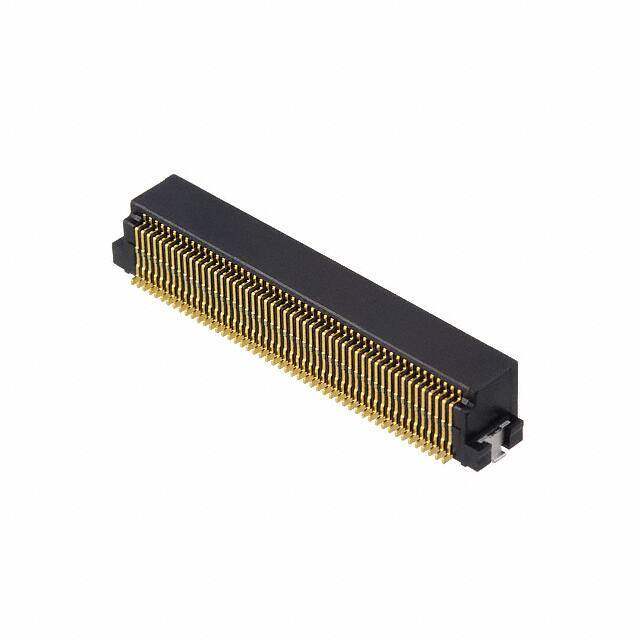

1747025-1 Real Image
Same model may have multiple batches, images only for reference.

1747025-1

Part No 1747025-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN PLUG 100POS R/A SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr TE Connectivity
Series Fine Mate
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Active
Connector Type Plug, Outer Shroud Contacts
Number of Positions 100
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Type Surface Mount, Right Angle
Features Solder Retention
Contact Finish Gold
Height Above Board 0.187" (4.75mm)
Base Product Number 1747025
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 854160-1747025-1
Ultra Librarian 3D Model Ultra Librarian 1747025-1 CAD Model

Description

The Fine Mate series is known for its high-quality connectors, and the 854160-1747025-1 is no exception.

  • Connector Type: Edge Type, Mezzanine
  • Positions: 100
  • Pitch: 0.020 inches (0.50mm)
  • Features: Solder Retention
  • Connector Type: Plug with Outer Shroud Contacts
  • Rows: 2
  • Contact Finish: Gold
  • Packaging Options: Tape and Reel or Cut Tape
  • Height Above Board: 0.187 inches (4.75mm)
  • Mounting Type: Surface Mount and Right-Angle
  • Standard Package: 1,000 pieces
  • Manufacturer: TE Connectivity
  • Product Status: Active
