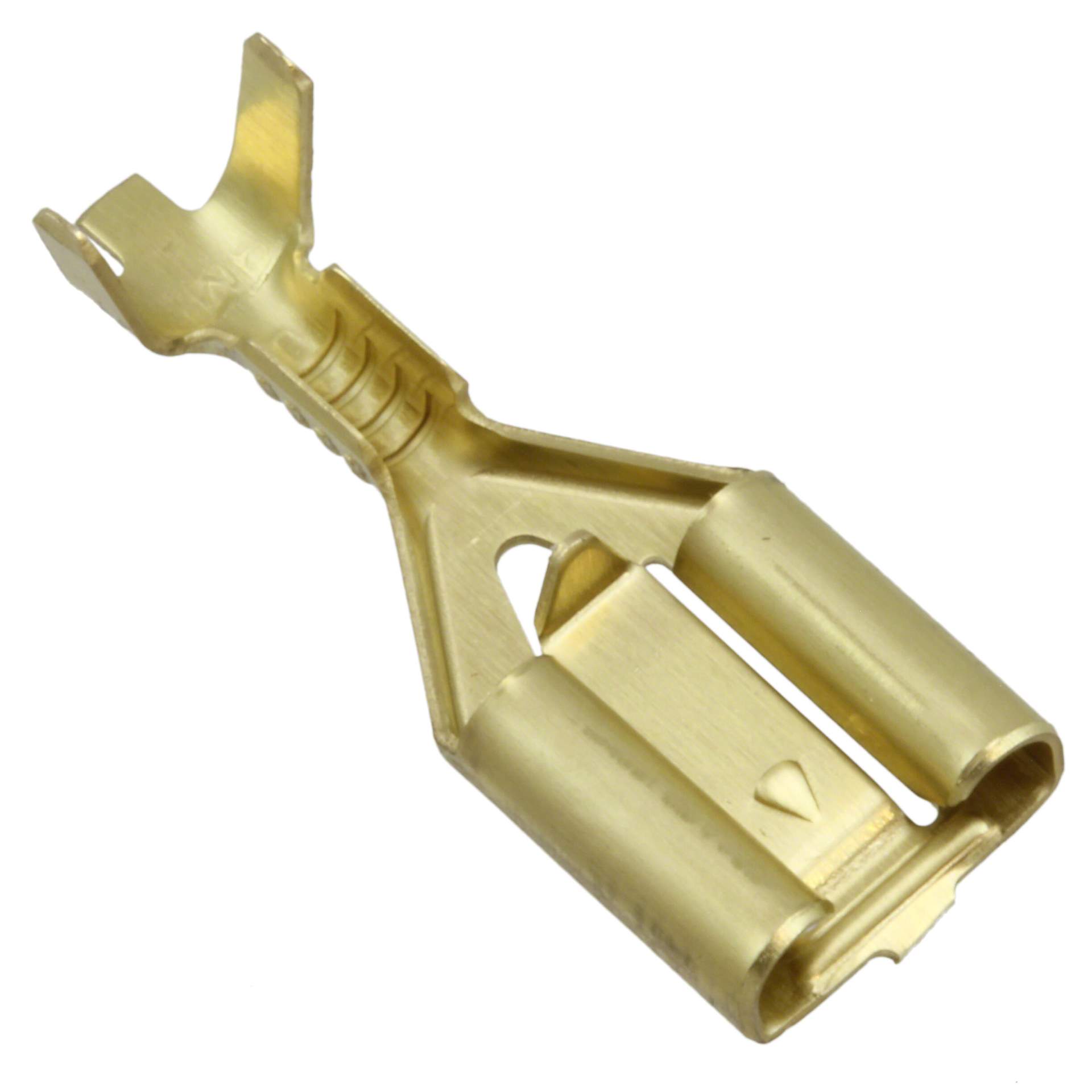

1742630-1 Real Image
Same model may have multiple batches, images only for reference.

1742630-1

Part No 1742630-1
Manufacturer TE Connectivity
Catalog Terminals
Description RAST 5 POSILOCK MKIII,22-18 AW / 0.250" (6.35mm) Quick Connect Female 18-22 AWG Crimp Connector Non-Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.293" (7.44mm)
Length - Overall 0.771" (19.58mm)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Non-Insulated
Mounting Free Hanging (In-Line)
Contact Material Brass
Insulation Diameter 0.090" ~ 0.155" (2.29mm ~ 3.94mm)
Base Product Number 174263
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number A120403CT,-1742630-1-SI,A120403TR
Standard Package 100,000
Win Source Part Number 1333616-1742630-1
Ultra Librarian 3D Model Ultra Librarian 1742630-1 CAD Model

Description

This quick disconnect connector from TE Connectivity AMP Connectors has a Win Source Part Number of 1333616-1742630-1 and comes in reel packaging.

  • Insulation: Non-insulated
  • Wire Gauge: 18-22 AWG
  • Contact Material: Brass
  • Gender: Female
  • Mounting: Free Hanging (In-Line)
  • Terminal Type: Standard
  • Length Overall: 0.771" (19.58mm)
  • Tab Width: 0.250" (6.35mm)
  • Tab Thickness: 0.032" (0.81mm)
  • Tab Length: 0.293" (7.44mm)
  • Insulation Diameter: 0.090" ~ 0.155" (2.29mm ~ 3.94mm)
  • HTSUS: 8536.90.4000
