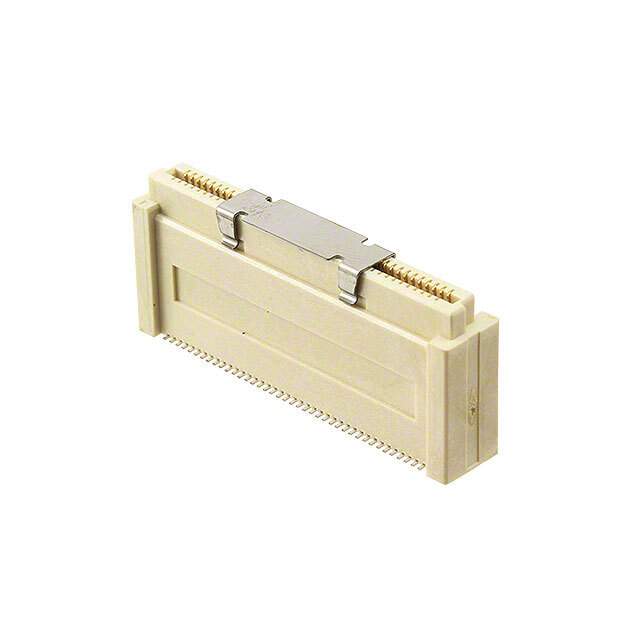

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr TE Connectivity AMP Connectors
Series Free Height (FH)
Package Tape & Reel (TR)
Connector Type Receptacle, Outer Shroud Contacts
Number of Positions 80
Pitch 0.031" (0.80mm)
Number of Rows 2
Mounting SMD (SMT)
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Mated Stacking Heights 17mm
Height Above Board 0.620" (15.75mm)
Base Product Number 1735482
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names -1735482-3-SI,2266-1735482-3,A119313CT,A119313TR
Standard Package 300
Win Source Part Number 1009895-1735482-3
Ultra Librarian 3D Model Ultra Librarian 1735482-3 CAD Model

Description

The TE Connectivity AMP Connectors 1009895-1735482-3 is a rectangular connector array that has a board guide feature and is ideal for use in mezzanine (board to board) applications.

  • Positions: 80
  • Pitch: 0.031" (0.80mm)
  • Height Above Board: 0.620" (15.75mm)
  • Mated Stacking Height: 17mm
  • Contact Finish Thickness: 8.00µin (0.203µm)
  • Contact Finish: Gold
  • Packaging: Tape and Reel
  • Standard Package: 300
