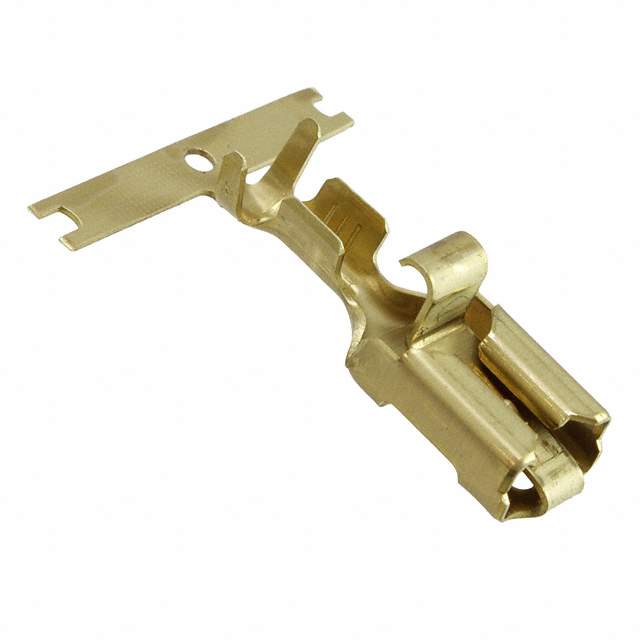

170233-1 Real Image
Same model may have multiple batches, images only for reference.

170233-1

Part No 170233-1
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 14-20AWG 0.250 / 0.250" (6.35mm) Quick Connect Female 14-20 AWG Crimp Connector Non-Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Length - Overall 0.870" (22.10mm)
Termination Crimp
Wire Gauge 14-20 AWG
Insulation Non-Insulated
Mounting Free Hanging (In-Line)
Contact Material Brass
Insulation Diameter 0.083" ~ 0.134" (2.11mm ~ 3.40mm)
Base Product Number 170233
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 170233-1-ND,-170233-1-SI,-170233-1-CSI,A107092CT,1702331,A107092TR,2266-170233-1TR
Standard Package 2,000
Win Source Part Number 1333786-170233-1
Ultra Librarian 3D Model Ultra Librarian 170233-1 CAD Model

Description

The TE Connectivity AMP Connectors 170233-1 is a female quick disconnect connector with a crimp termination and non-insulated insulation.

  • Connector Type: Quick Disconnect
  • Gender: Female
  • Termination Type: Crimp
  • Insulation: Non-Insulated
  • Tab Width: 0.250 inches (6.35mm)
  • Tab Thickness: 0.032 inches (0.81mm)
  • Wire Gauge: 14-20 AWG
  • Contact Material: Brass
  • Overall Length: 0.870 inches (22.10mm)
  • Mounting Style: Free Hanging (In-Line)
  • Standard Package: 2,000
  • RoHS Compliant: Yes
  • ECCN: EAR99
