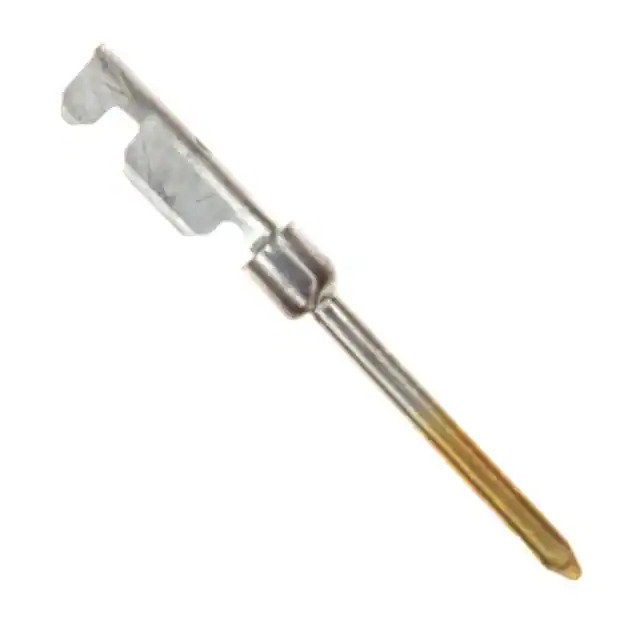

1658670-4 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Contacts - Multi Purpose
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HDP-22
Package Bulk
Product Status Active
Type Stamped
Pin or Socket Pin
Contact Termination Crimp
Wire Gauge 22-28 AWG
Contact Material Brass
Contact Finish Gold
Contact Finish Thickness Flash
Base Product Number 1658670
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1363389-1658670-4
Ultra Librarian 3D Model Ultra Librarian 1658670-4 CAD Model

Description

The TE Connectivity AMP Connectors 1363389-1658670-4 is a pin contact for multi-purpose applications.

  • Series: AMPLIMITE HDP-22
  • Type: Stamped
  • Termination: Crimp
  • Wire Gauge: 22 to 28 AWG
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Contact Material: Brass
  • Status: Active
