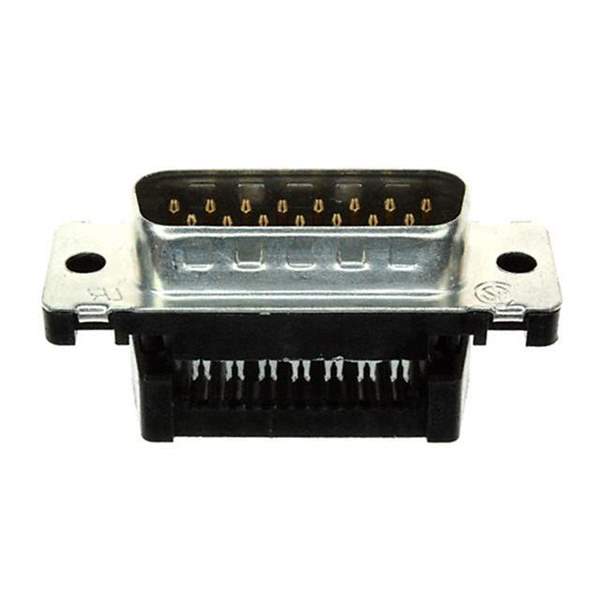

1658613-3 Real Image
Same model may have multiple batches, images only for reference.

1658613-3

Part No 1658613-3
Manufacturer TE Connectivity
Catalog D - Sub Connectors
Description CONN D-SUB PLUG 15POS IDC / 15 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HDF-20
Package Bulk
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 15
Number of Rows 2
Mounting Type Free Hanging (In-Line)
Shell Size, Connector Layout 2 (DA, A)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination IDC, Ribbon Cable
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1.25A
Features Feed Through, Grounding Indents
Color Black
Dielectric Material Thermoplastic
Wire Gauge 26-28 AWG, Stranded or Solid
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 1658613
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4051
Other Names 2266-1658613-3,AMR15B,-1658613-3-SI,16586133
Standard Package 40
Win Source Part Number 1020776-1658613-3
Ultra Librarian 3D Model Ultra Librarian 1658613-3 CAD Model

Description

The TE Connectivity AMPLIMITE HDF-20 is a high-quality connector that is designed for use in electronic circuits.

  • Connector Type: plug, male pins
  • Positions: 15
  • Wire Gauge: 26-28 AWG stranded or solid wires
  • Voltage Rating: -
  • Operating Temperature Range: -55°C and 105°C
  • Mounting Type: free hanging (in-line)
  • Feature: housing/shell (unthreaded) flange
