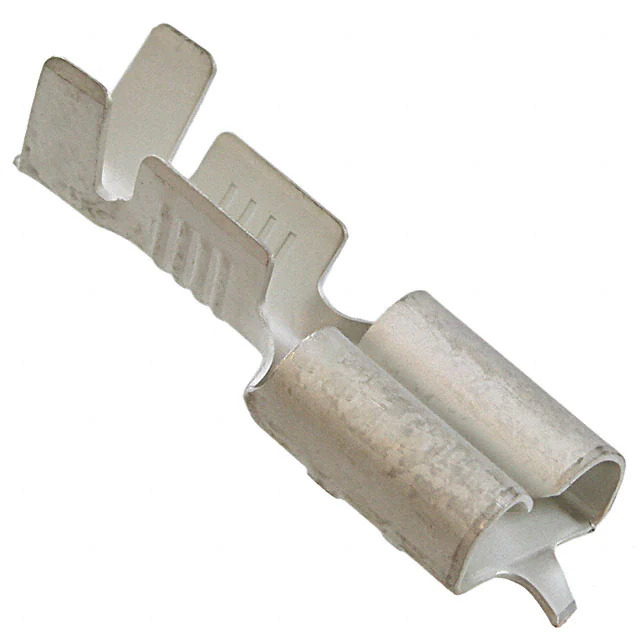

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Fastin-Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length -
Length - Overall 0.756" (19.20mm)
Termination Crimp
Wire Gauge 13-17 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.083" ~ 0.122" (2.11mm ~ 3.10mm)
Base Product Number 160917
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1365058-160917-2
Ultra Librarian 3D Model Ultra Librarian 160917-2 CAD Model

Description

The TE Connectivity AMP Connectors 160917-2 is a female quick connect terminal manufactured.

  • Series: Fastin-Faston
  • Wire Gauge: 13-17 AWG
  • Termination: Crimp
  • Length: 0.756" (19.20mm)
  • Tab Width: 0.250" (6.35mm)
  • Contact Material: Brass
  • Contact Finish: Tin
  • Insulated: Non-Insulated
  • Insulation Diameter: 0.083" to 0.122" (2.11mm to 3.10mm)
  • HTSUS Code: 8536.90.4000
  • ECCN: EAR99
