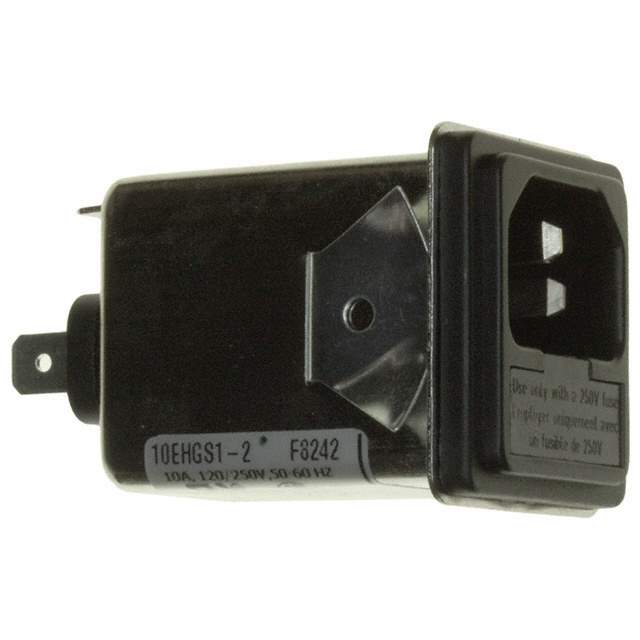

1609116-6 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Power Entry Connectors - Inlets, Outlets, Modules
Mfr TE Connectivity Corcom Filters
Series HG, Corcom
Package Bulk
Connector Style IEC 320-C14
Connector Type Receptacle, Male Blades - Module
Current - IEC 10A
Voltage - IEC 120/250VAC
Filter Type Filtered (EMI, RFI) - Commercial
Accomodates a Fuse Yes (Fuse Not Included)
Number of Positions 3
Mounting Type Panel Mount, Snap-In
Termination Quick Connect - 0.250" (6.3mm)
Fuse Holder, Drawer Fuse Holder
Panel Cutout Dimensions Rectangular - 31.50mm x 32.80mm
Panel Thickness 0.032" ~ 0.080" (0.81mm ~ 2.03mm)
Approval Agency CSA, UL, VDE
Base Product Number 1609116
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.30.8000
Other Names 10EHGS1-2,-1609116-6-SI,10EHGS12,-10EHGS1-2-SI,0-1609116-6,-10EHGS1-2-SI-ND,2266-1609116-6,CCM1877
Standard Package 36
Win Source Part Number 1061165-1609116-6
Ultra Librarian 3D Model Ultra Librarian 1609116-6 CAD Model

Description

The 1061165-1609116-6 is a filtered power entry connector from TE Connectivity Corcom Filters.

  • Connector Type: Receptacle, Male Blades - Module
  • Termination: Quick Connect 0.250" (6.3mm)
  • Current Rating (IEC): 10A @ 120/250VAC
  • Panel Cutout: Rectangular - 31.50mm x 32.80mm
  • Filter Type: Filtered (EMI, RFI) - Commercial
  • Fuse Holder: Drawer
  • Mounting: Panel Mount, Snap-In
  • Fuse Accommodation: Fuse (Fuse not included)
  • REACH: Affected
  • ECCN: EAR99
  • Approvals: CSA, UL, VDE
