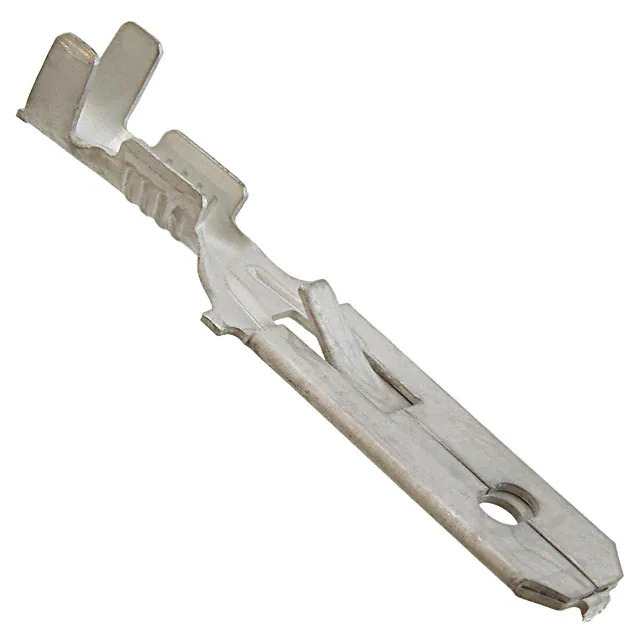

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Fastin-Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Male
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.618" (15.70mm)
Length - Overall 1.102" (28.00mm)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.087" ~ 0.126" (2.21mm ~ 3.20mm)
Base Product Number 160691
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364839-160691-2
Ultra Librarian 3D Model Ultra Librarian 160691-2 CAD Model

Description

The Fastin-Faston Quick Disconnect Connector from TE Connectivity AMP Connectors is a versatile and reliable component for various electronic applications.

  • Wire Gauge: 18-22 AWG
  • Contact Finish: Tin
  • Contact Material: Non-Insulated Brass
  • Gender: Male
  • Terminal Type: Standard
  • Tab Width: 0.250"
  • Tab Thickness: 0.032"
  • Overall Length: 1.102"
  • Mounting: Free Hanging (In-Line)
  • Packaging: Tape & Reel
